Ipex 9853025 Cpvc Schedule 80 Blind Flange 2.5 in

Product Description

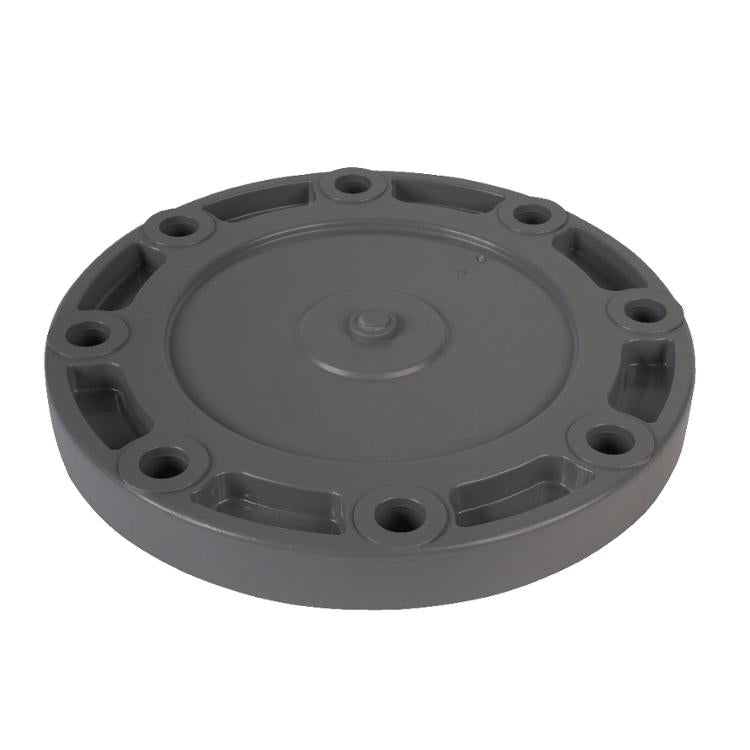

The IPEX 9853025 is a 2.5-inch CPVC Schedule 80 blind flange designed to seal the end of a pipe section by mating with an opposing flange fitting. Manufactured from Xirtec CPVC, this one-piece solid flange handles a maximum service temperature of 200 degrees F under pressure, with occasional exposure to boiling water at 212 degrees F. The CPVC material carries a design stress rating of 2,000 psi at 73 degrees F, making it well suited for demanding industrial and commercial piping applications. Licensed plumbers and pipefitters working on chemical, hot water, or process piping systems are the primary installers.

This blind flange is used in residential and commercial plumbing and industrial process piping systems where a pipe run must be terminated or capped at a flanged connection. Its Schedule 80 rating means it handles higher-pressure applications than Schedule 40 fittings. The Xirtec CPVC construction resists rust, pitting, scaling, and corrosion on both interior and exterior surfaces, reducing long-term maintenance demands in corrosive or high-temperature service environments.

Key Features

• Maximum service temperature of 200 degrees F under pressure, with occasional exposure to 212 degrees F boiling water
• Design stress of 2,000 psi at 73 degrees F for reliable high-pressure service
• One-piece solid CPVC construction eliminates internal cavities that could trap corrosive media
• Corrosion-resistant Xirtec CPVC will not rust, pit, scale, or corrode on interior or exterior surfaces
• Requires less than half the energy to produce compared to equivalent carbon steel or steel alloy materials
• Schedule 80 wall thickness rated for higher-pressure piping systems

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 2.5-inch CPVC Schedule 80 flanged piping systems.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter familiar with CPVC flanged piping systems. Depressurize and drain the affected pipe section completely before removing any existing flange or fitting. Follow applicable IPC and local plumbing code requirements for flange bolt torque sequences and gasket selection when mating flanges. Avoid over-tightening flange bolts, as CPVC is subject to stress cracking under excessive mechanical load.

Technical Specifications

• Material: CPVC (Xirtec)
• Schedule: Schedule 80
• Pipe Size: 2.5 inches
• Maximum Service Temperature: 200 degrees F (93 degrees C) under pressure
• Occasional Exposure Temperature: 212 degrees F (100 degrees C)
• Design Stress: 2,000 psi at 73 degrees F (23 degrees C)
• Fitting Type: Blind Flange

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 9853025
