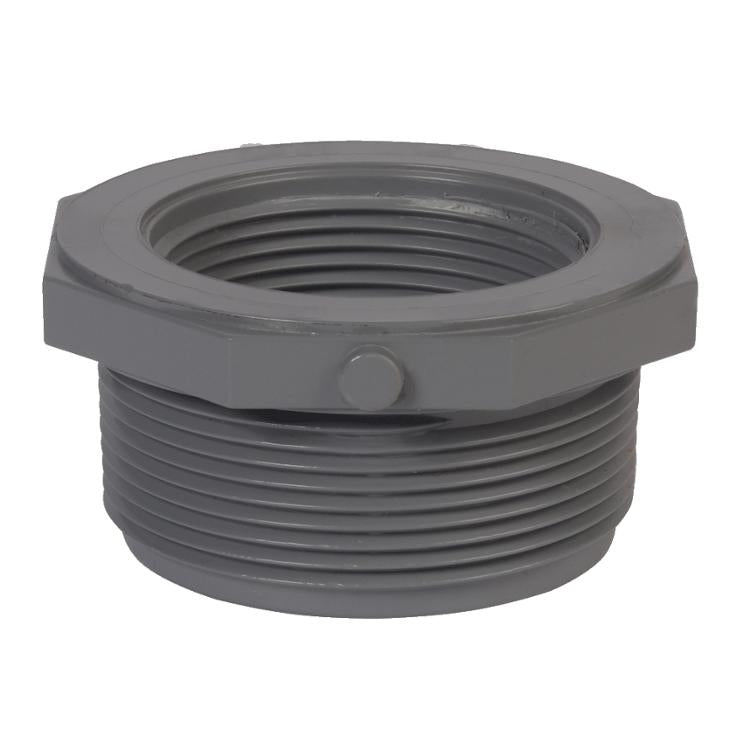

Ipex 9839250 Cpvc Sch 80 Reducing Bushing 2x1-1/4 in Mpt Fpt

Product Description

The IPEX 9839250 is a Schedule 80 CPVC reducing bushing designed for use in Xirtec CPVC piping systems. The flush-style bushing features a 2-inch male threaded (MPT) end and a 1-1/4-inch female threaded (FPT) end, allowing a straight reduction within a threaded piping run. Rated for a maximum service temperature of 200 degrees F under pressure, with occasional exposure to boiling water at 212 degrees F, this bushing is built for demanding hot-water and chemical-handling applications. CPVC construction provides a design stress of 2,000 psi at 73 degrees F. Installation is handled by licensed plumbers working on commercial or industrial piping systems.

This reducing bushing is suited for residential, commercial, and industrial plumbing systems where a threaded CPVC line must step down from 2-inch pipe to 1-1/4-inch pipe. Common applications include hot and cold water distribution, industrial process piping, and chemical handling lines where metal pipe corrosion is a concern. Xirtec CPVC is manufactured to require less than half the energy of equivalent carbon steel or steel alloy pipe, making it a practical choice for new construction and retrofit installations alike.

Key Features

• Flush-style reducing bushing — compact inline size reduction without added fittings
• MPT x FPT connection — threads directly into existing Schedule 80 threaded fittings
• Maximum service temperature of 200 degrees F under pressure, with tolerance for brief boiling-water exposure at 212 degrees F
• Design stress of 2,000 psi at 73 degrees F
• CPVC material will not rust, pit, scale, or corrode on interior or exterior surfaces
• Maintenance-free service life in standard plumbing and industrial process environments

Compatibility

Designed for use in Xirtec CPVC Schedule 80 threaded piping systems. Fits standard 2-inch MPT x 1-1/4-inch FPT Schedule 80 threaded connections.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and ASTM standards for CPVC threaded fittings. Shut off and depressurize the piping system fully before removing any existing fittings or installing this bushing. Use CPVC-compatible thread sealant or tape rated for CPVC — do not use petroleum-based compounds, which can degrade the material. Hand-tighten first, then snug with a strap wrench; avoid pipe wrenches that may crack threaded CPVC fittings.

Technical Specifications

• Material: CPVC (Xirtec)
• Schedule: Schedule 80
• Connection Type: MPT x FPT (Male Threaded x Female Threaded)
• Inlet Size: 2 inches (MPT)
• Outlet Size: 1-1/4 inches (FPT)
• Style: Flush reducing bushing
• Maximum Service Temperature: 200 degrees F under pressure; 212 degrees F occasional exposure
• Design Stress: 2,000 psi at 73 degrees F

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 9839250
