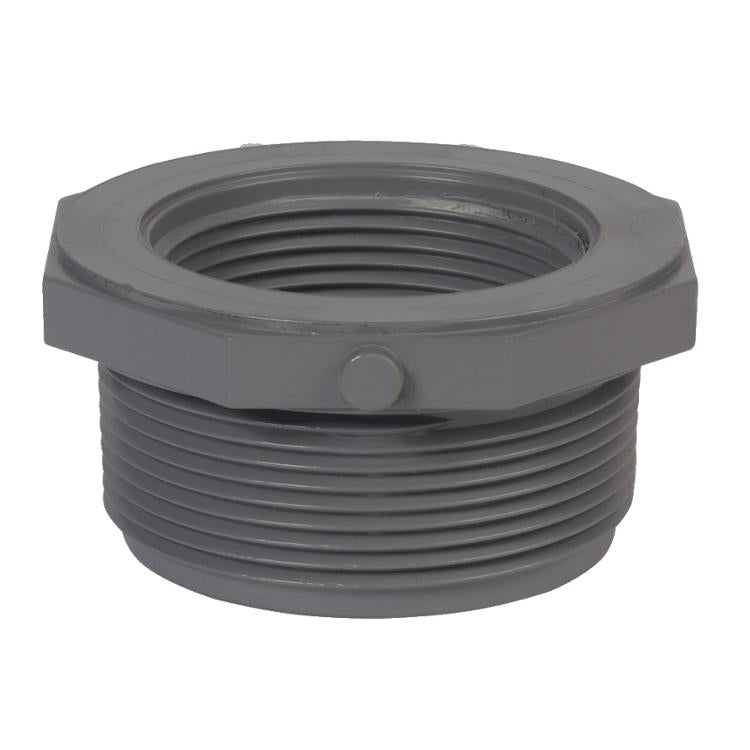

Ipex 9839247 Cpvc Sch 80 Reducing Bushing 2in X 1/2in Mpt Fpt

Product Description

The IPEX 9839247 is a CPVC Schedule 80 reducing bushing designed to step down pipe size within a threaded CPVC piping system. It connects via a male threaded (MPT) inlet to a female threaded (FPT) outlet and installs in a flush-style configuration. Built from Xirtec CPVC, the bushing is rated for continuous service up to 200 degrees F under pressure, with a design stress of 2,000 psi at 73 degrees F. Plumbers and pipefitters install this fitting in industrial, commercial, and mechanical systems where a threaded size reduction is required without adding external flange or socket depth.

This reducing bushing is suited for use in Schedule 80 CPVC piping systems handling hot and cold water, chemical process lines, and industrial fluid distribution. The flush-style body keeps the transition compact within tight mechanical spaces. It is a direct threaded fitting that does not require solvent cement, making it appropriate where disassembly or future serviceability is a consideration in the system design.

Key Features

• Flush-style reducing bushing keeps the size transition compact with no added face protrusion
• MPT x FPT threaded connection for tool-only installation with no solvent cement required
• Maximum continuous service temperature of 200 degrees F under pressure
• Rated design stress of 2,000 psi at 73 degrees F per CPVC material standards
• CPVC material resists rust, pitting, scaling, and corrosion on interior and exterior surfaces
• Schedule 80 wall thickness for higher pressure ratings compared to Schedule 40 equivalents

Compatibility

Designed for use with Xirtec CPVC Schedule 80 threaded piping systems. Fitting dimensions conform to Schedule 80 standards for 2 inches x 1/2 inches threaded reducing bushings.

Installation Notes

Installation is performed by licensed plumbers or qualified pipefitters. Shut off system pressure and drain the line before removing or installing any threaded fitting. Apply an appropriate thread sealant or PTFE tape rated for CPVC and the fluid being conveyed. Do not over-torque threaded CPVC fittings, as excessive force can crack the fitting body; follow the fitting manufacturer threading guidelines and applicable IPC or local plumbing code requirements.

Technical Specifications

• Material: CPVC (Xirtec)
• Schedule: Schedule 80
• Inlet Size: 2 inches (MPT)
• Outlet Size: 1/2 inches (FPT)
• Connection Type: MPT x FPT
• Style: Flush Reducing Bushing
• Maximum Service Temperature: 200 degrees F (93 degrees C) under pressure
• Design Stress: 2,000 psi at 73 degrees F (23 degrees C)

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 9839247
