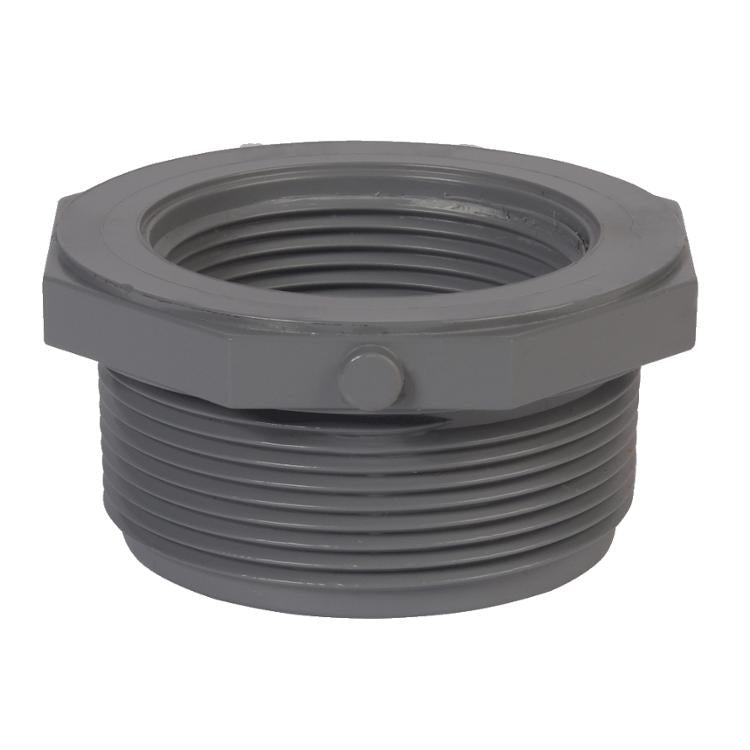

Ipex 9839210 Cpvc Sch 80 Reducing Bushing 1-1/2x3/4 Mpt Fpt

Product Description

The IPEX 9839210 is a CPVC Schedule 80 flush-style reducing bushing with a male threaded (MPT) inlet and a female threaded (FPT) outlet. It steps down pipe size from 1-1/2 inches to 3/4 inches within a CPVC piping system. Rated for a maximum service temperature of 200 degrees F under pressure, with occasional exposure to boiling water at 212 degrees F, and a design stress of 2,000 psi at 73 degrees F, this bushing is built for demanding industrial and commercial plumbing applications. Licensed plumbers and pipefitters install this fitting as part of Xirtec CPVC distribution systems.

This reducing bushing is intended for use in Xirtec CPVC piping systems where a size reduction is required between threaded connections. Typical installations include industrial process piping, commercial hot and cold water distribution, and chemical handling systems where corrosion resistance and high-temperature performance are required. The flush-style design allows the bushing to seat directly into a female-threaded fitting or valve without added projection, keeping assemblies compact.

Key Features

• Reduces from 1-1/2 inches MPT to 3/4 inches FPT in a single fitting
• Schedule 80 CPVC construction rated to 2,000 psi design stress at 73 degrees F
• Maximum service temperature of 200 degrees F under pressure, with occasional boiling-water exposure at 212 degrees F
• Flush-style bushing design for compact, low-profile installation
• CPVC material will not rust, pit, scale, or corrode on interior or exterior surfaces
• Lower embodied energy than equivalent carbon steel or steel alloy fittings

Compatibility

Designed for use with Xirtec CPVC Schedule 80 piping systems using standard MPT and FPT threaded connections.

Installation Notes

This fitting is installed by licensed plumbers working on CPVC threaded piping systems. Shut off system pressure and drain the line before removing or installing any threaded fitting. Use CPVC-compatible thread sealant or PTFE tape rated for CPVC; do not use petroleum-based pipe dopes, which can degrade CPVC. Follow applicable plumbing codes, including IPC guidelines, for threaded joint assembly and pressure testing.

Technical Specifications

• Material: CPVC
• Schedule: Schedule 80
• Inlet Size: 1-1/2 inches
• Outlet Size: 3/4 inches
• Connection Type: MPT x FPT
• Bushing Style: Flush
• Maximum Service Temperature: 200 degrees F (93 degrees C) under pressure
• Occasional Exposure Rating: 212 degrees F (100 degrees C) boiling water
• Design Stress: 2,000 psi at 73 degrees F (23 degrees C)

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 9839210
