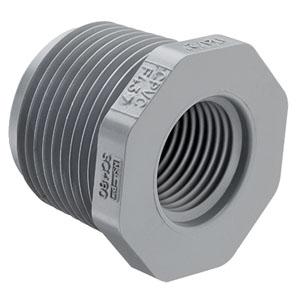

Ipex 9839209 Cpvc Sch 80 Male X Female Bushing 1-1/2 X 1/2 in

Product Description

The IPEX 9839209 is a CPVC Schedule 80 male x female bushing sized at 1-1/2 inches x 1/2 inches, designed for use in industrial and commercial piping systems where corrosion resistance and chemical compatibility are required. Manufactured from Corzan chlorinated polyvinyl chloride (CPVC), this bushing provides a reliable transition between pipe sizes within a Schedule 80 system. It is installed by licensed plumbers and pipefitters working on chemical process lines, industrial fluid handling, and potable water distribution. The CPVC material maintains smooth interior walls that resist rust, pitting, and scaling, supporting consistent flow characteristics over the life of the installation.

This bushing is suited for industrial process piping, chemical handling systems, and potable water applications where metal fittings present corrosion or galvanic compatibility concerns. It performs reliably across a broad service temperature range and is immune to damage from corrosive soil conditions, making it appropriate for both above-ground and underground installations. Facilities handling acids, alcohols, alkalies, salt solutions, or halogens will find this fitting compatible with their process media requirements. It fits within the IPEX Corzan pipe, valves, and fittings system, which is engineered and manufactured to consistent dimensional and performance standards by a single manufacturer.

Key Features

• Schedule 80 CPVC construction for higher pressure ratings versus Schedule 40
• 1-1/2 inches male x 1/2 inches female configuration for in-line size reduction
• Corzan CPVC material provides exceptional resistance to acids, alcohols, alkalies, salt solutions, and halogens
• NSF and CSA International listed for potable water service
• Immune to electrochemical and galvanic corrosion, including in naturally corrosive soil conditions
• Lower thermal conductivity than metal piping helps sustain service temperature more efficiently
• Smooth interior walls resist rust, pitting, and scaling to maintain flow performance over time

Compatibility

Designed as an OEM-style replacement and system component fitting within IPEX Corzan Schedule 80 CPVC piping systems for industrial and chemical process applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable plumbing codes such as the IPC. Depressurize and drain the affected pipe section completely before removing existing fittings or making new connections. CPVC solvent cement and primer appropriate for Schedule 80 CPVC systems must be used; do not substitute PVC-rated cement. Allow full cure time per the solvent cement manufacturer instructions before returning the line to service.

Technical Specifications

• Material: Corzan CPVC (Chlorinated Polyvinyl Chloride)
• Schedule: Schedule 80
• Connection Type: Male x Female Bushing
• Inlet Size: 1-1/2 inches (male)
• Outlet Size: 1/2 inches (female)
• Certifications: NSF listed, CSA International listed for potable water

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 9839209
