Ipex 9839167 Cpvc Sch 80 Reducing Bushing 1-1/4 X 3/4 Mpt Fpt

Product Description

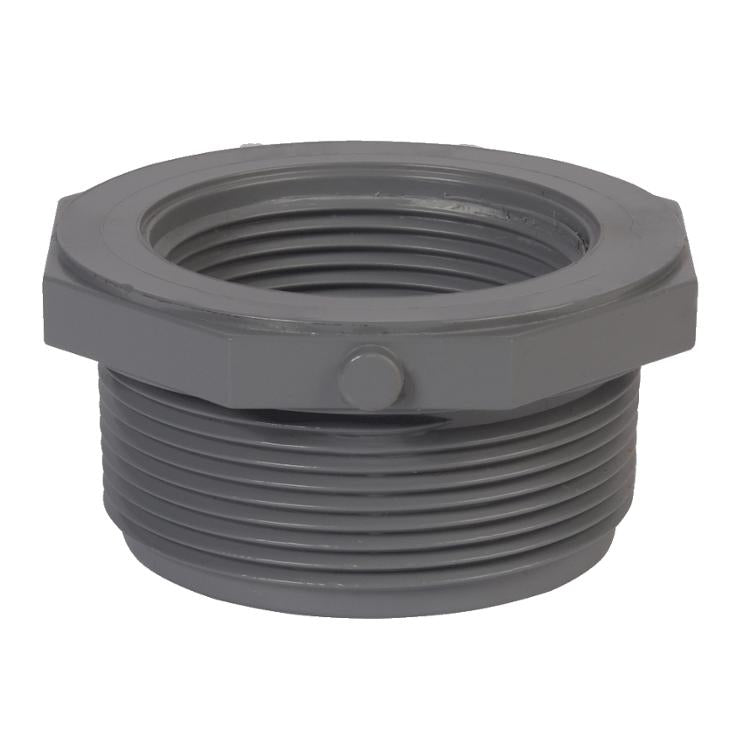

The IPEX 9839167 is a Schedule 80 CPVC flush-style reducing bushing with a male threaded (MPT) inlet and female threaded (FPT) outlet. It reduces a 1-1/4 inch line down to a 3/4 inch connection in pressurized piping systems. Rated for a maximum service temperature of 200 degrees F under pressure, with occasional exposure to boiling water at 212 degrees F, this bushing suits hot-water and chemical-distribution applications where metal fittings corrode or add unnecessary weight. Licensed plumbers and pipefitters install this fitting in industrial, commercial, and residential systems where CPVC is the specified pipe material.

This reducing bushing is designed for use within CPVC piping systems requiring a threaded size transition. It is well-suited for hot and cold water distribution, industrial process lines, and chemical-handling systems where corrosion resistance is a priority. The flush-style design keeps the fitting compact within tight manifold or header configurations. Installers working on Xirtec CPVC systems will find this fitting a direct match for standard Schedule 80 threaded connections in that product line.

Key Features

• Reduces 1-1/4 inch MPT to 3/4 inch FPT in a single flush-style fitting
• Schedule 80 CPVC construction rated to 2,000 psi design stress at 73 degrees F
• Maximum service temperature of 200 degrees F under pressure
• Rated for occasional exposure to boiling water at 212 degrees F
• Will not rust, pit, scale, or corrode on interior or exterior surfaces
• Requires less than half the energy to produce compared to equivalent carbon steel or steel alloy fittings

Compatibility

Designed as an OEM-style replacement and system fitting for Schedule 80 CPVC threaded piping systems, including Xirtec CPVC piping installations requiring a 1-1/4 inch MPT to 3/4 inch FPT size reduction.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the IPC. Shut off and depressurize the system before removing any existing fittings or making new connections. Use CPVC-rated thread sealant or tape on the male threads — do not use sealants formulated for metal pipe that may be chemically incompatible with CPVC. Avoid over-tightening threaded joints, as CPVC can crack under excessive torque.

Technical Specifications

• Material: CPVC (Chlorinated Polyvinyl Chloride)
• Schedule: Schedule 80
• Inlet Size: 1-1/4 inches
• Outlet Size: 3/4 inches
• Connection Type: MPT x FPT (Male Threaded x Female Threaded)
• Style: Flush Reducing Bushing
• Maximum Service Temperature: 200 degrees F (93 degrees C) under pressure
• Boiling Water Exposure Rating: 212 degrees F (100 degrees C) occasional
• Design Stress: 2,000 psi at 73 degrees F (23 degrees C)

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 9839167
