Ipex 9837291A Cpvc Sch 80 Reducing Hex Bushing 2.5x1.5 in

Product Description

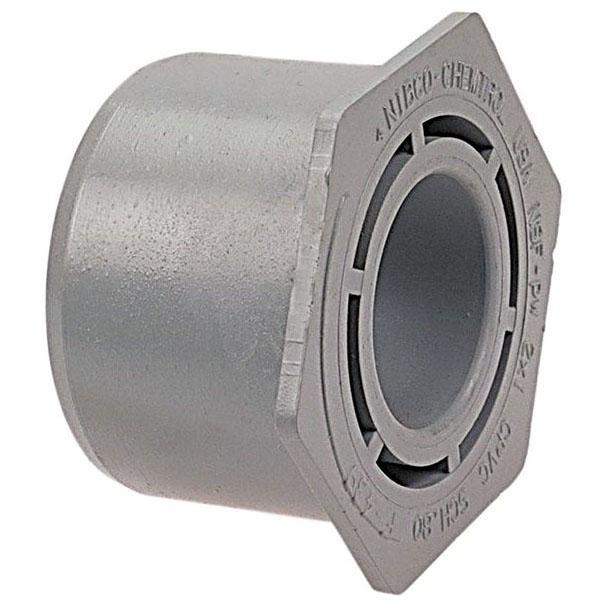

The IPEX 9837291A is a CPVC Schedule 80 reducing hex bushing designed to transition between a 2.5-inch spigot connection and a 1.5-inch socket connection in industrial and commercial piping systems. Manufactured from Corzan CPVC to ASTM F439 and injection molded in a light gray finish, this bushing carries a pressure rating of 2000 psi at 73 degrees F and a maximum temperature rating of 210 degrees F. The hex head profile allows for standard wrench installation when used in threaded configurations. Licensed plumbers and pipefitters install this fitting using solvent cement in Schedule 80 systems requiring a reliable, leak-free reduction between pipe sizes.

This bushing is suited for a wide range of demanding industrial and commercial applications where corrosion resistance and mechanical strength are required. Typical use cases include chemical processing lines, industrial plating systems, chilled water distribution, deionized water lines, chemical drainage, and wastewater treatment systems. The CPVC material provides superior hydraulic performance and maintains structural integrity across a broad temperature range, including underground installations. It is packaged in quantities of 5 per carton, making it practical for project-scale procurement.

Key Features

• Reducing hex head bushing transitions 2.5-inch spigot to 1.5-inch socket in Schedule 80 systems
• Pressure rated at 2000 psi at 73 degrees F for demanding high-pressure applications
• Maximum service temperature of 210 degrees F suitable for hot process lines
• CPVC material meets ASTM F439 and is compliant with ANSI/NSF 14/61 standards
• Injection-molded construction provides consistent wall thickness and dimensional accuracy
• Lightweight and maintenance-free with no corrosion concerns in chemical or wet environments

Compatibility

Designed as an OEM-style replacement and standard fitting for CPVC Schedule 80 piping systems using solvent cement joining per ASTM F439 specifications.

Installation Notes

Installation should be performed by a licensed plumber or qualified pipefitter. Isolate and depressurize the piping system completely before cutting in or replacing any fitting. Use a CPVC-rated solvent cement and primer appropriate for Schedule 80 fittings and follow manufacturer cure times before returning the line to service. Reference applicable codes including IAPMO, IPC, or local plumbing authority requirements for chemical and industrial piping installations.

Technical Specifications

• Fitting Type: Hex Head, Flush, Reducing Bushing
• Size: 2.5 inches x 1.5 inches
• Schedule: 80
• End Connection: Spigot x Socket
• Material: CPVC
• Material Specification: ASTM F439
• Applicable Standard: ANSI/NSF 14/61
• Pressure Rating: 2000 psi at 73 degrees F
• Temperature Rating: 210 degrees F
• Process: Injection Molded
• Finish: Light Gray
• Application: Chemical Processing, Industrial Plating, Chilled Water Distribution, Deionized Water Lines, Chemical Drainage, Wastewater Treatment
• Packaging Quantity: 5 per Carton
• Weight: 0.39 pounds
• Warranty: 1 Year Limited

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 9837291A
