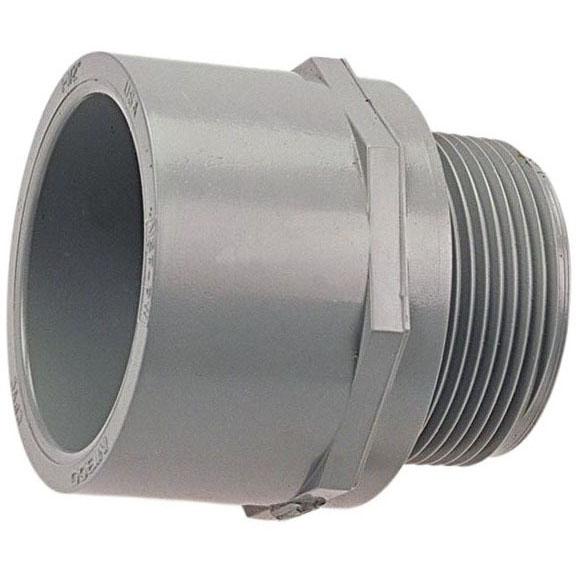

Ipex 9836025 Cpvc Sch 80 Socket X Male Adapter 2-1/2 in

Product Description

The IPEX 9836025 is a 2-1/2 inch CPVC Schedule 80 socket x male threaded adapter designed for industrial and commercial piping systems that demand chemical resistance and mechanical durability. Manufactured from Corzan CPVC to ASTM F439, this injection-molded fitting connects a socket end to a male threaded end using solvent cement on the socket side. It is rated for 2000 psi at 73 degrees F and handles fluid temperatures up to 210 degrees F. The light gray Schedule 80 construction provides greater wall thickness than Schedule 40, making it appropriate for high-pressure and corrosive-fluid service. Licensed plumbers and pipefitters install this fitting in process piping, water treatment, and industrial distribution systems.

This adapter is suited for a wide range of demanding applications including chemical processing, chemical drainage, chilled water distribution, deionized water lines, industrial plating operations, and wastewater treatment systems. Its CPVC material provides broad chemical compatibility and maintains mechanical strength across a wide temperature range, performing reliably both above and below grade. It meets ANSI/NSF 14/61G standards, making it appropriate for systems that carry potable or process water where material certification is required. Sold in cartons of 5 units.

Key Features

• CPVC Schedule 80 construction per ASTM F439 for high-pressure and corrosive-fluid service
• 2000 psi pressure rating at 73 degrees F with a 210 degrees F temperature rating
• Socket x male threaded end connection — solvent cement socket side, threaded male side
• Meets ANSI/NSF 14/61G standards for potable and industrial water systems
• Injection-molded light gray finish; maintenance-free once installed
• Sold 5 per carton

Compatibility

Designed for use in CPVC Schedule 80 piping systems where a socket-to-male-threaded transition is required, including chemical processing, chilled water distribution, deionized water, industrial plating, and wastewater treatment applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter familiar with CPVC solvent cement joining procedures. Isolate and depressurize the line and allow the system to reach ambient temperature before cutting or fitting. Use a CPVC-rated solvent cement and primer on the socket end; do not use PVC-only cements on CPVC fittings. Follow applicable IPC and ASTM F493 guidelines for joint cure time before returning the system to service.

Technical Specifications

• Material: CPVC
• Material Specification: ASTM F439
• Schedule: 80
• Size: 2-1/2 inches
• End Connection: Socket x Male Threaded
• Pressure Rating: 2000 psi at 73 degrees F
• Temperature Rating: 210 degrees F
• Applicable Standard: ANSI/NSF 14/61G
• Process: Injection Molded
• Finish: Light Gray
• Weight: 0.56 pounds
• Packaging Quantity: 5 per Carton
• Warranty: 1 Year Limited

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 9836025
