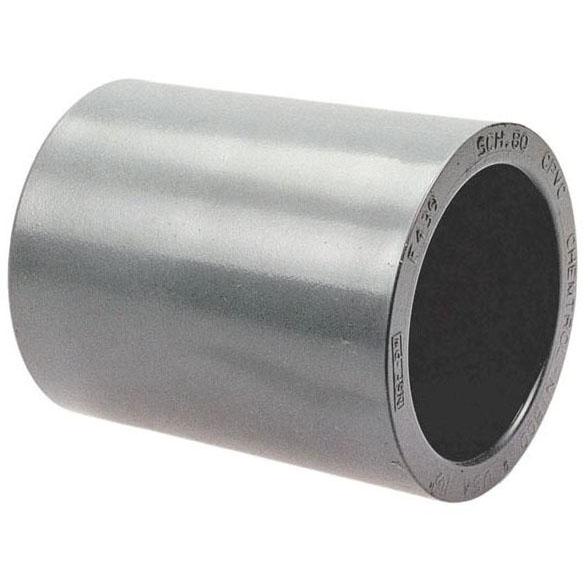

Ipex 9829420 Cpvc Sch 80 Reducing Coupling 4x2 Inch

Product Description

The IPEX 9829420 is a CPVC Schedule 80 reducing coupling designed for industrial and commercial piping systems that handle corrosive fluids, high temperatures, and elevated pressures. Manufactured from Corzan CPVC to ASTM F439 and compliant with ANSI/NSF 14/61, this fitting transitions a 4-inch line down to a 2-inch line using a female socket by female socket end connection joined with solvent cement. The pressure rating reaches 2000 psi at 73 degrees F, and the temperature rating tops out at 210 degrees F. Injection-molded construction produces consistent wall thickness and reliable dimensional accuracy. The light gray finish is standard for CPVC Schedule 80 industrial fittings.

This coupling is suited for a wide range of demanding process and industrial applications including chemical processing, chemical drainage, chilled water distribution, industrial plating, deionized water lines, and wastewater treatment systems. It is appropriate for both above-ground and underground installations where broad temperature performance and superior hydraulic flow characteristics are required. Licensed plumbers, pipefitters, and industrial maintenance technicians are the primary installers in commercial and industrial settings.

Key Features

• Reducing coupling transitions 4-inch pipe down to 2-inch pipe within a single fitting
• Rated to 2000 psi at 73 degrees F for high-pressure service
• Maximum service temperature of 210 degrees F suits hot process and HVAC chilled water lines
• Meets ASTM F439 material specification and ANSI/NSF 14/61 for potable and industrial water systems
• Solvent-cement socket connections create a leak-free, maintenance-free joint
• Injection-molded CPVC construction provides lightweight handling and corrosion resistance

Compatibility

Designed as an OEM-style replacement and new-installation fitting for CPVC Schedule 80 piping systems joined by solvent cement, conforming to ASTM F439 dimensional standards for 4-inch by 2-inch reducing couplings.

Installation Notes

Installation is performed by licensed plumbers or qualified pipefitters following applicable IPC and ASME B31.3 process piping guidelines. Depressurize and drain the line completely before cutting into an existing system. Use only CPVC-rated solvent cement and primer; do not substitute PVC cement, as material compatibility is required for rated pressure and temperature performance. Allow full cure time per the cement manufacturer before returning the system to service.

Technical Specifications

• Fitting Type: Reducing Coupling
• Size A: 4 inches
• Size B: 2 inches
• Schedule: 80S
• End Connection: Female Socket x Female Socket
• Material: CPVC
• Material Specification: ASTM F439
• Applicable Standard: ANSI/NSF 14/61
• Pressure Rating: 2000 psi at 73 degrees F
• Temperature Rating: 210 degrees F
• Process: Injection Molded
• Finish: Light Gray
• Weight: 1.73 pounds
• Packaging Quantity: 5 per carton
• Application: Chemical Processing, Chemical Drainage, Chilled Water Distribution, Industrial Plating, Deionized Water Line, Wastewater Treatment System
• Warranty: 1 Year Limited

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 9829420
