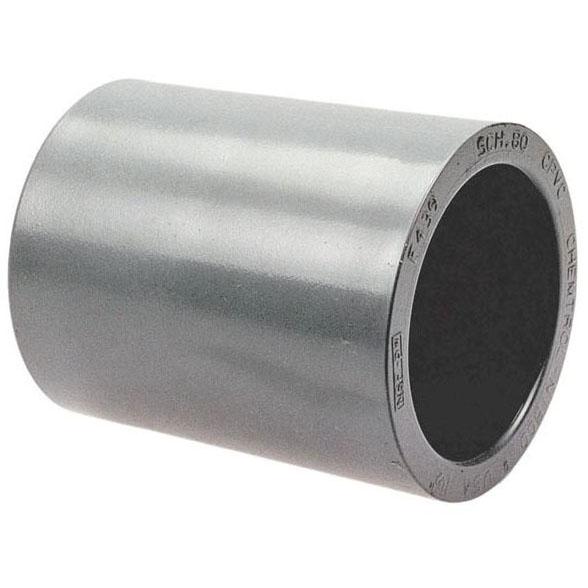

Ipex 9829060 Cpvc Schedule 80 Socket Coupling 6 Inches

Product Description

The IPEX 9829060 is a 6-inch CPVC Schedule 80 straight coupling with female socket x female socket end connections, manufactured to ASTM F439 specifications under the Chemtrol line. It joins two lengths of 6-inch CPVC pipe using solvent cement, creating a leak-free, pressure-rated joint suitable for aggressive service environments. The fitting is injection molded in Corzan CPVC thermoplastic, rated to 2000 psi at 73 degrees F and up to 210 degrees F, giving it a wide operating envelope for both high-pressure and elevated-temperature systems. It is installed by licensed plumbers and industrial piping mechanics.

This coupling is suited for commercial and industrial piping systems where corrosion resistance, mechanical strength, and hydraulic performance are required. Typical applications include chemical processing, chemical drainage, chilled water distribution, industrial plating, deionized water lines, and wastewater treatment systems. The lightweight CPVC construction simplifies handling and positioning in tight mechanical rooms or buried installations, where its superior underground performance adds long-term reliability.

Key Features

• CPVC Schedule 80 construction per ASTM F439 for high-pressure industrial service
• Rated to 2000 psi at 73 degrees F with a 210 degrees F maximum temperature rating
• Female socket x female socket configuration for standard solvent-cement joining
• Injection molded Corzan CPVC for consistent wall thickness and mechanical strength
• Compliant with ANSI/NSF 14/61 for potable water and industrial fluid systems
• Maintenance-free, corrosion-resistant design for chemical and water treatment environments

Compatibility

Designed for use with 6-inch CPVC Schedule 80 pipe systems joined by solvent cement in industrial and commercial plumbing applications including chemical processing, chilled water distribution, deionized water, and wastewater treatment.

Installation Notes

Installation should be performed by a licensed plumber or qualified industrial pipefitter following applicable IPC or local plumbing codes. Shut off and depressurize the system completely before cutting and fitting. Use a CPVC-compatible solvent cement and primer rated for Schedule 80 fittings, and allow full cure time before returning the line to service. Do not use this fitting with threaded or push-to-connect joining methods; solvent cement is the specified joining process for this socket configuration.

Technical Specifications

• Pressure Rating: 2000 psi at 73 degrees F
• Temperature Rating: 210 degrees F
• Size: 6 inches
• Schedule: 80S
• End Connection: Female Socket x Female Socket
• Material: CPVC
• Material Specification: ASTM F439
• Applicable Standard: ANSI/NSF 14/61
• Process: Injection Molded
• Finish: Light Gray
• Weight: 4.01 pounds
• Packaging Quantity: 4 per carton
• Warranty: 1 Year Limited

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 9829060
