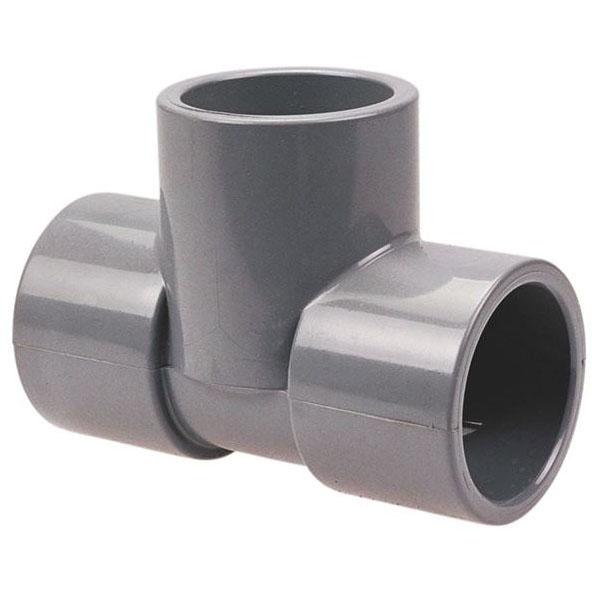

Ipex 9801030 Cpvc Schedule 80 3 Inch Socket Tee

Product Description

The IPEX 9801030 is a 3-inch CPVC Schedule 80 straight tee fitting designed for industrial and commercial piping systems that handle corrosive fluids, high-purity water, and chemically aggressive media. Manufactured from Corzan CPVC to ASTM F439 specifications, it features three female socket end connections joined by solvent cement for a leak-free, permanent bond. The fitting is rated at 2000 psi at 73 degrees F and carries a maximum temperature rating of 210 degrees F, making it suitable for demanding thermal and pressure environments. Its light gray finish and injection-molded construction deliver consistent wall thickness and reliable mechanical strength across a broad service range.

This fitting is intended for industrial piping installations where metal fittings are unsuitable due to corrosion, contamination, or weight considerations. Typical applications include chemical processing lines, industrial plating systems, chilled water distribution, deionized water lines, chemical drainage, and wastewater treatment systems. Licensed plumbers and pipefitters install this fitting in both above-ground and underground configurations. It is sold in packaging quantities of five units per pack, making it practical for multi-connection runs on larger projects.

Key Features

• CPVC construction to ASTM F439 meets ANSI/NSF 14/61G standards for safe use in potable and process water systems
• Pressure rated at 2000 psi at 73 degrees F for high-demand industrial service
• Temperature rated to 210 degrees F for use in hot-water and thermal process lines
• Three female socket connections accept solvent-cement joining for a permanent, leak-free assembly
• Injection-molded Schedule 80 wall thickness provides superior mechanical strength versus Schedule 40
• Lightweight CPVC material reduces installation labor compared to metal fittings

Compatibility

Designed as an OEM-style replacement and new-installation fitting for 3-inch CPVC Schedule 80 piping systems joined by solvent cement, conforming to ASTM F439 and ANSI/NSF 14/61G standards.

Installation Notes

This fitting is installed by licensed plumbers or industrial pipefitters following applicable plumbing codes such as the IPC and ASTM F493 solvent-cement procedures. Before joining, isolate and depressurize the system completely and allow all fluid to drain from the line. Clean and dry all mating socket surfaces, apply the correct CPVC primer and solvent cement for Schedule 80 fittings, and allow full cure time before restoring pressure. Do not use PVC solvent cement in place of CPVC-rated cement, as this will compromise joint integrity.

Technical Specifications

• Nominal Size: 3 inches
• Schedule: 80
• End Connection: Female Socket x Female Socket x Female Socket
• Material: CPVC
• Material Specification: ASTM F439
• Applicable Standard: ANSI/NSF 14/61G
• Pressure Rating: 2000 psi at 73 degrees F
• Temperature Rating: 210 degrees F
• Finish: Light Gray
• Process: Injection Molded
• Weight: 2.51 pounds
• Packaging Quantity: 5
• Application: Chemical Processing, Industrial Plating, Chilled Water Distribution, Deionized Water Line, Chemical Drainage, Waste Water Treatment System
• Warranty: 1 Year Limited

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 9801030
