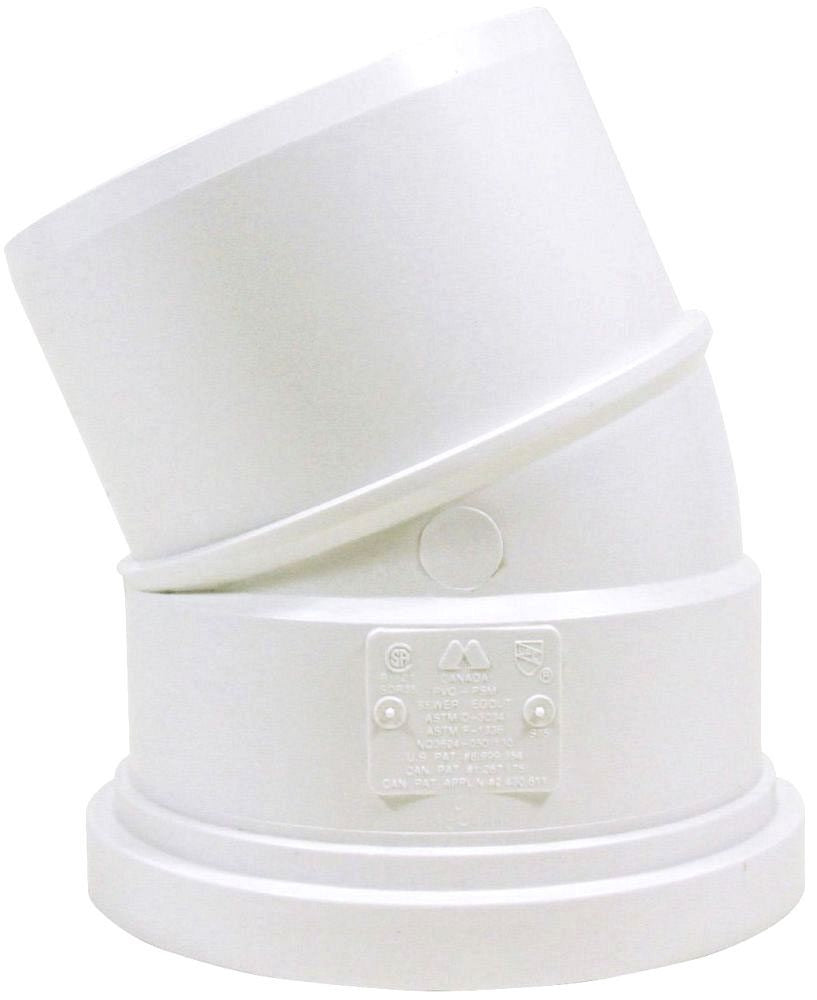

Ipex 63975 Pvc Sewer Elbow 22.5 Degree 6 Inch DR35

Product Description

The IPEX 63975 is a 6-inch, 22.5-degree PVC sewer elbow rated for DR35 service, designed for gravity-flow sanitary and storm sewer installations. The gasketed spigot end (gasketed x spigot configuration) allows for fast, tool-free joint assembly using a rubber ring gasket seal, reducing labor time in the trench. Manufactured to DR35 dimensional standards, this fitting delivers the wall thickness required for typical residential and commercial underground sewer applications. Licensed plumbers and utility contractors install this fitting as part of mainline sewer runs where a shallow directional change is needed.

This elbow is suited for underground sewer and drain piping systems where a 22.5-degree deflection is required. The DR35 wall rating makes it appropriate for standard burial depths in residential site work and light commercial utility construction. The Trench Tough Plus designation and Ring-Tite gasketed connection indicate the fitting is engineered for trench-installed gravity sewer mains. It is installed in concert with compatible PVC sewer pipe and fittings of the same outside diameter series.

Key Features

• 22.5-degree bend angle for shallow directional changes in mainline sewer runs
• DR35 wall thickness rating suitable for standard underground burial conditions
• Gasketed x spigot (GXSP) end configuration for quick rubber-ring joint assembly
• Trench Tough Plus construction for impact resistance during handling and installation
• Ring-Tite gasketed system provides a watertight, root-resistant joint
• PVC material resists corrosion, chemical attack, and biological degradation

Compatibility

Designed for use with 6-inch DR35 PVC sewer pipe and fittings in gravity-flow sanitary and storm sewer systems. Compatible pipe and fittings must match the outside diameter series for proper gasket seating and joint integrity.

Installation Notes

Installation should be performed by a licensed plumber or utility contractor in accordance with local plumbing codes and ASTM D3034 installation standards. Ensure the trench bed is properly prepared with compacted bedding material before placing the fitting. Lubricate the gasket and spigot end per the manufacturer's instructions before pushing the joint home. Do not over-deflect the joint beyond the rated angular deflection of the pipe series being used.

Technical Specifications

• Pipe Size: 6 inches
• Bend Angle: 22.5 degrees
• Pipe Standard: DR35
• End Configuration: Gasketed x Spigot (GXSP)
• Material: PVC
• Application: Gravity sewer, drain
• UPC: 62245463975

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 63975
