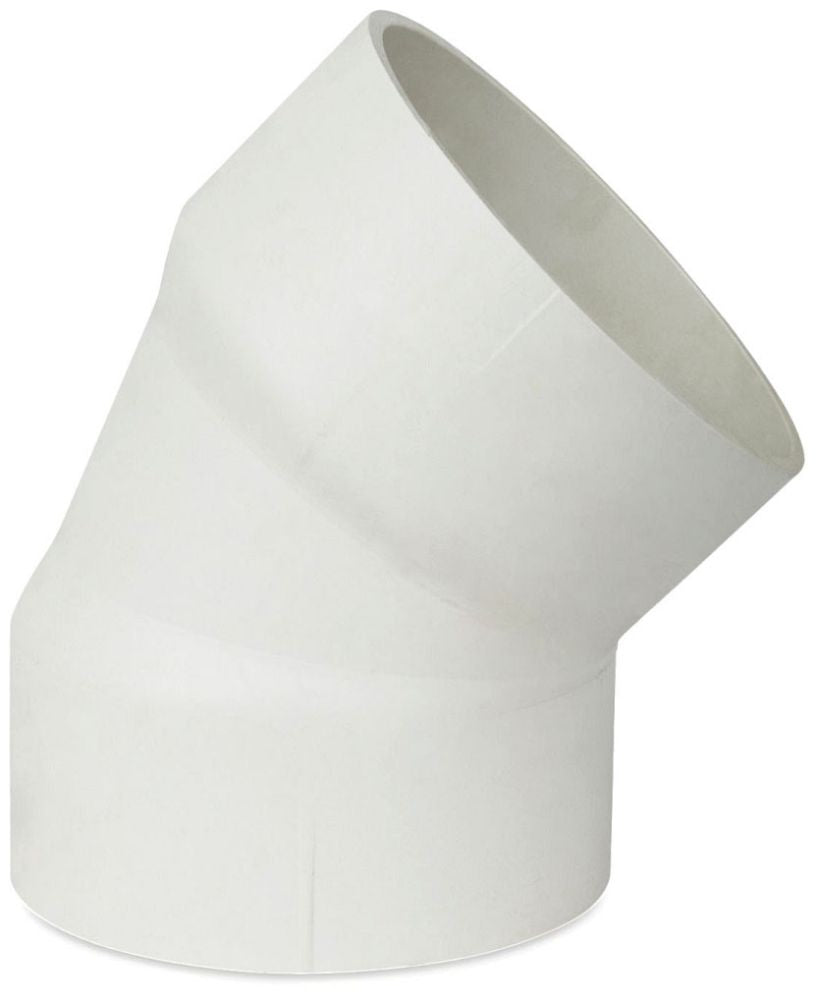

Ipex 626188 Pvc Dwv 45 Degree Elbow 12 Inch Hxh

Product Description

The IPEX 626188 is a 12-inch PVC DWV 45-degree elbow designed for drain, waste, and vent piping systems in residential and commercial construction. Built from foamcore PVC, this fitting provides a hub-by-hub (HxH) connection at a 45-degree angle, allowing installers to change direction in horizontal and vertical drain runs without reducing flow capacity. The foamcore construction keeps the fitting lightweight while maintaining structural integrity for non-pressure drainage applications. This elbow is not pressure rated and is intended strictly for gravity-flow DWV service. Licensed plumbers and pipefitters are the primary installers for a fitting of this size.

This fitting is suited for large-diameter DWV installations including main building drains, large branch lines, and below-slab sanitary drainage systems. At 12 inches, it is typically found in commercial or multi-unit residential projects where high-volume drainage is required. It connects hub to hub, accepting solvent-welded pipe on both ends for a permanent, leak-resistant joint.

Key Features

• 12-inch hub-by-hub PVC DWV 45-degree elbow for gravity drain systems
• Foamcore PVC construction reduces weight while maintaining durability
• 45-degree angle for gradual direction changes in drain and vent runs
• Not pressure rated — intended for DWV service only
• White finish standard for PVC DWV applications
• Solvent-weld connection on both ends for a permanent joint

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 12-inch PVC DWV piping systems in residential and commercial drainage applications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the International Plumbing Code (IPC). Solvent-weld connections require proper primer and solvent cement rated for PVC DWV fittings. Ensure all pipe ends are cut square, deburred, and cleaned before cementing. This fitting is not rated for pressurized systems and must not be used in pressure applications.

Technical Specifications

• Material: Foamcore PVC
• Size: 12 inches
• Angle: 45 degrees
• Connection Type: Hub x Hub (HxH)
• Color: White
• Pressure Rated: No
• Application: DWV (Drain, Waste, Vent)

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 626188
