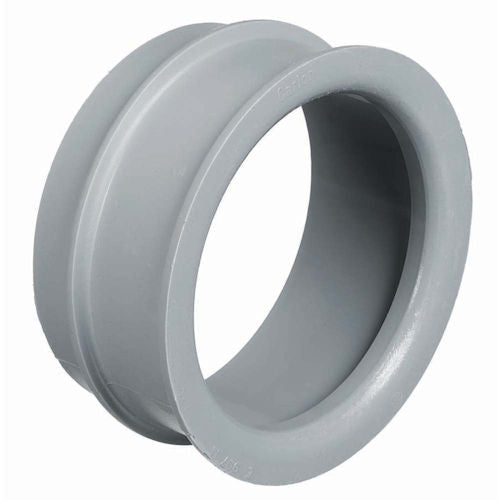

Ipex 600pbe Pvc Sch40 Conduit End Bell 6 Inch

Product Description

The IPEX 600pbe is a 6-inch PVC Schedule 40 conduit end bell designed to provide a smooth, flared entry point at conduit terminations. It protects wire and cable insulation from abrasion where conductors enter or exit a conduit run. Fabricated from PVC, this fitting is well suited for indoor and outdoor electrical installations where corrosion resistance and lightweight construction are priorities. Electricians and electrical contractors install this component as part of standard raceway assemblies in both commercial and residential applications.

This end bell is used at the termination points of 6-inch Schedule 40 PVC conduit systems. It is commonly installed at pull boxes, panels, equipment enclosures, and underground conduit runs where wire protection at the conduit mouth is required. The flared bell mouth eases wire pulling and reduces the risk of insulation damage during conductor installation, making it a standard fitting in larger conduit raceway systems.

Key Features

• 6-inch trade size fits Schedule 40 PVC conduit
• PVC construction provides corrosion resistance for indoor and outdoor use
• Flared bell mouth protects wire and cable insulation at conduit entry and exit points
• Lightweight material simplifies handling during installation
• Compatible with standard PVC conduit fittings and raceway assemblies

Compatibility

Designed as an OEM-style replacement and standard fitting for 6-inch Schedule 40 PVC conduit raceway systems.

Installation Notes

Installation is performed by a licensed electrician in accordance with applicable NEC requirements for conduit terminations. Power should be de-energized and locked out before working on any conduit system connected to live circuits. PVC conduit cement appropriate for Schedule 40 fittings is typically used to secure the end bell; consult the cement manufacturer instructions for cure time before pulling wire. Ensure the conduit mouth is clean and free of burrs before seating the fitting.

Technical Specifications

• Material: PVC
• Trade Size: 6 inches
• Conduit Schedule: Schedule 40

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 600pbe
