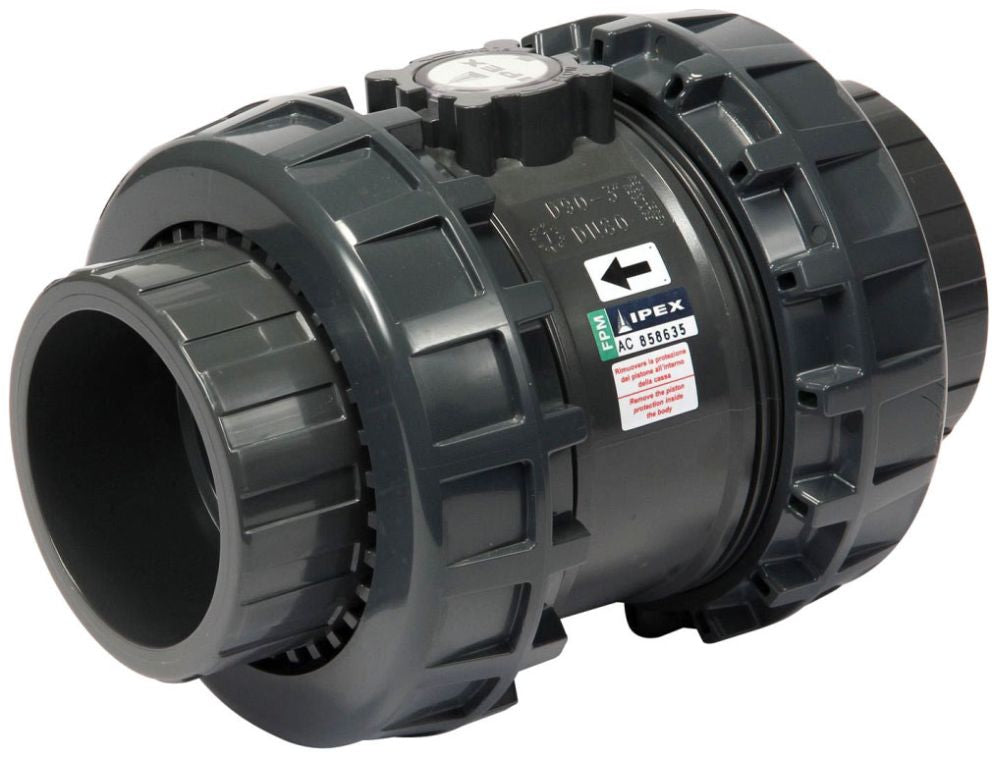

Ipex 52482 Pvc Tru-union Ball Check Valve 3 Inch

Product Description

The IPEX 52482 is a 3-inch PVC Tru-Union ball check valve designed to allow one-directional flow and prevent backflow in non-metallic piping systems. The union construction allows the valve body to be removed from the line without disturbing the pipe connections, simplifying service and inspection. Socket ends provide a solvent-weld connection to standard schedule 40 or 80 PVC pipe. EPDM seals offer good resistance to water, mild chemicals, and common pool and irrigation media. Licensed plumbers and irrigation technicians are the primary installers of this valve type.

This valve is suited for residential and light commercial plumbing, pool and spa circulation, irrigation, and chemical feed applications where PVC piping is used. The tru-union design is especially practical in equipment rooms and tight mechanical spaces where inline valve removal would otherwise require cutting and re-gluing pipe sections. The EPDM elastomer seal material is compatible with chlorinated water and many water treatment fluids.

Key Features

• 3-inch socket ends for solvent-weld connection to standard PVC pipe
• Tru-union body allows full in-line removal without cutting pipe
• Ball check mechanism provides reliable backflow prevention
• EPDM seals for resistance to chlorinated water and mild chemicals
• Full PVC construction resists corrosion and chemical degradation

Compatibility

Designed as an OEM-style replacement or new-installation ball check valve for 3-inch PVC piping systems using socket-end solvent-weld connections.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC guidelines. Shut off system flow and depressurize the line before removing or installing the valve. Use only PVC-rated solvent cement and primer on socket connections and allow full cure time before restoring flow. Verify correct flow-direction orientation before cementing the valve in place, as ball check valves are directional.

Technical Specifications

• Valve Type: Ball Check
• Body Material: PVC
• Seal Material: EPDM
• Connection Type: Socket Ends (Solvent Weld)
• Size: 3 inches
• Union Configuration: Tru-Union

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 52482
