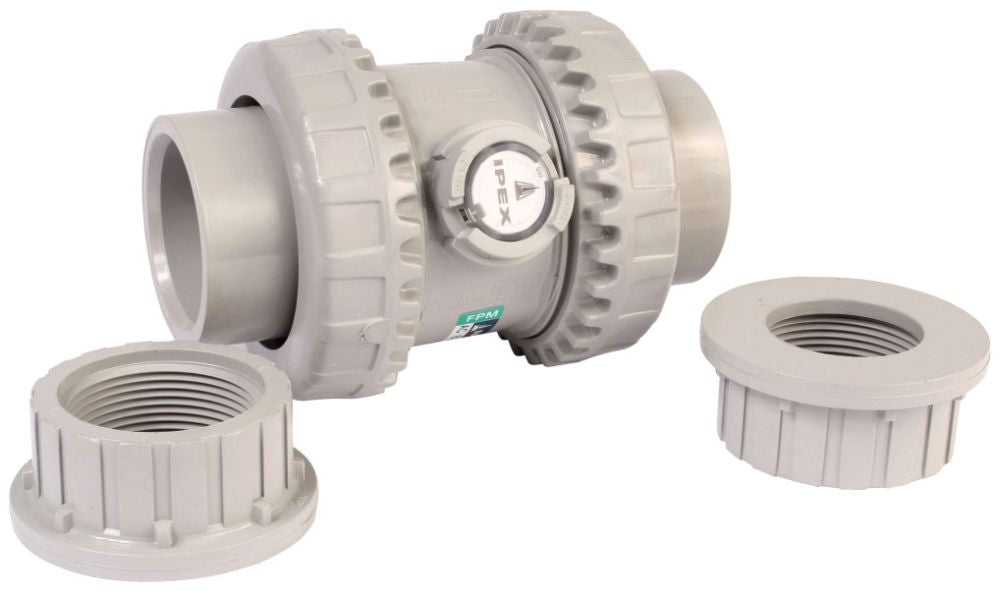

Ipex 52135 Cpvc Tru-union Ball Check Valve 1-1/2 in

Product Description

The IPEX 52135 is a 1-1/2 inch CPVC Tru-Union ball check valve designed for chemical-resistant piping systems where backflow prevention is required. The Tru-Union body construction allows the valve to be removed from the line without cutting pipe, making service and inspection straightforward. Socket and female pipe thread (FPT) end connections are included, and FPM seals provide resistance to a broad range of aggressive fluids. This valve is typically installed by plumbers and industrial piping contractors working on chemical feed, water treatment, or corrosive-fluid handling systems.

This ball check valve is suited for residential and commercial plumbing and industrial applications where CPVC piping is already in use. The 1-1/2 inch size fits standard CPVC pipe runs, and the socket-by-FPT end configuration supports both solvent-cemented and threaded connections in the same valve body. The Tru-Union design is particularly useful in systems that require periodic maintenance access or valve replacement without full line disassembly.

Key Features

• Tru-Union body design allows in-line removal without cutting pipe
• CPVC construction resists corrosion and chemical attack
• FPM seals compatible with a wide range of aggressive media
• Socket and FPT end connections for installation flexibility
• Ball check mechanism provides reliable backflow prevention

Compatibility

Designed as an OEM-style replacement or new-install ball check valve for 1-1/2 inch CPVC piping systems using socket and female pipe thread connections.

Installation Notes

Installation should be performed by a licensed plumber or qualified piping contractor. Shut off system flow and relieve line pressure before servicing or installing this valve. Solvent-cement socket connections must follow CPVC cement and primer manufacturer procedures and applicable plumbing code requirements. Verify flow direction markings on the valve body before final assembly to ensure proper check valve orientation.

Technical Specifications

• Pipe Size: 1-1/2 inches
• Valve Type: Ball Check
• Body Material: CPVC
• Seal Material: FPM
• End Connections: Socket and Female Pipe Thread (FPT)
• Design: Tru-Union (in-line serviceable)

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 52135
