Ipex 500p4090d36rsch40elb Pvc Sch40 Conduit 90 Elbow 5in

Product Description

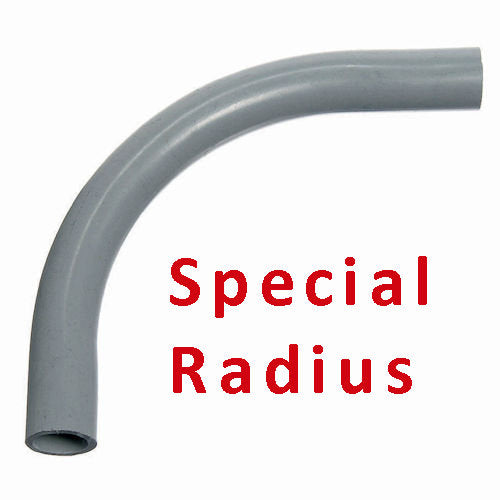

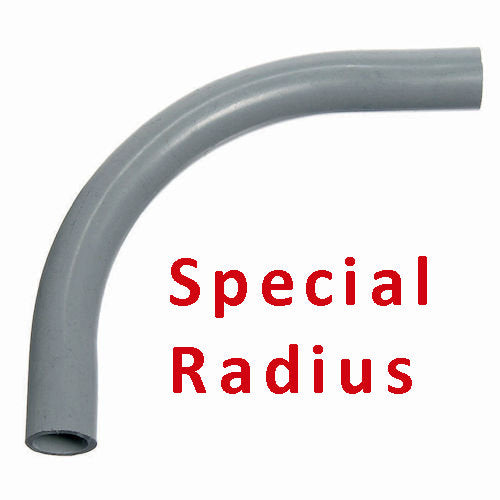

The IPEX 500p4090d36rsch40elb is a 5-inch Schedule 40 PVC conduit 90-degree elbow with a 36-inch radius and plain ends. This fitting redirects electrical conduit runs at a 90-degree angle while maintaining the smooth interior bore required for wire and cable pull-through. The long-radius design reduces pulling tension on conductors during installation. It is rated for Schedule 40 service and manufactured from rigid PVC. Electricians and electrical contractors install this fitting in underground, direct-burial, and above-grade conduit systems where a sweeping directional change is required.

This elbow is suited for use in commercial and industrial electrical conduit installations where large-diameter PVC conduit is specified. The 5-inch trade size and 36-inch radius make it appropriate for high-fill conduit runs carrying multiple large conductors or cable assemblies. Plain-end terminations allow field solvent-cementing to standard Schedule 40 PVC conduit and fittings per applicable code requirements.

Key Features

• 5-inch trade size Schedule 40 PVC construction for compatibility with standard conduit systems
• 90-degree sweep with 36-inch radius reduces conductor pulling tension compared to short-radius elbows
• Plain ends accept solvent-cement connections to Schedule 40 PVC conduit and fittings
• Rigid PVC material resists moisture, corrosion, and common chemical exposure
• Suitable for underground, direct-burial, and above-grade conduit applications

Compatibility

Designed as an OEM-style fitting for use with 5-inch Schedule 40 PVC electrical conduit systems using solvent-cement plain-end connections.

Installation Notes

Installation of this fitting is performed by licensed electricians in accordance with the National Electrical Code (NEC) and applicable local amendments. De-energize all conductors before pulling wire through any conduit section. Apply PVC conduit solvent cement evenly to both the pipe end and the fitting socket, and allow adequate cure time before pulling conductors per the cement manufacturer's recommendations. Support conduit runs per NEC spacing requirements to prevent sag and stress on cemented joints.

Technical Specifications

• Trade Size: 5 inches
• Schedule: Schedule 40
• Material: PVC
• Bend Angle: 90 degrees
• Radius: 36 inches
• End Type: Plain End
• UPC: 980060067437

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 500p4090d36rsch40elb
