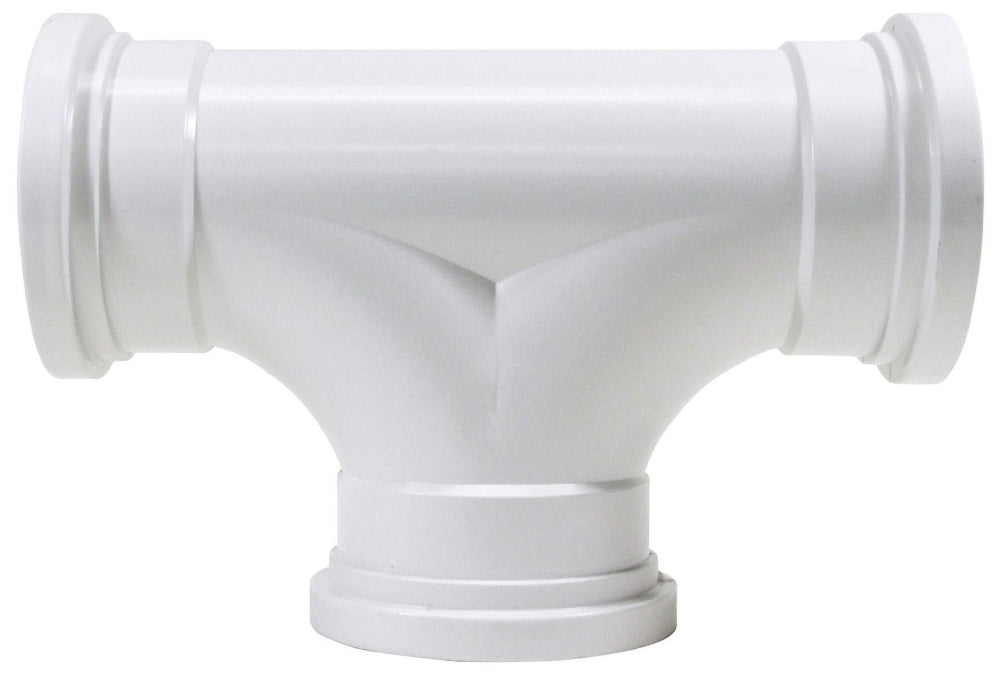

Ipex 43806 Pvc SDR35 4 Inch 2-way Gasketed Cleanout Tee

Product Description

The IPEX 43806 is a 4-inch PVC SDR35 two-way gasketed cleanout tee designed for gravity sewer and storm drain piping systems. Manufactured to SDR35 dimensional standards, this fitting uses a gasket (ring-tite style) connection on all three hubs, eliminating the need for solvent cement at joints. The two-way cleanout configuration provides access from two directions, making it well suited for rodding and jetting during routine drain maintenance. Licensed plumbers and sewer contractors install this fitting in below-grade trench applications where soil load resistance and leak-free gasketed joints are required. The PVC construction resists corrosion and typical sewer gases encountered in residential and light commercial drain systems.

This cleanout tee is intended for use in gravity-flow sewer and drain piping installed below grade or in trench conditions. The SDR35 wall thickness rating makes it appropriate for standard burial depths in residential and commercial site work. The gasketed hub connections (G x G x G) allow for thermal expansion and contraction without joint stress, which is a practical advantage in long underground runs. This fitting is compatible with 4-inch SDR35 PVC sewer pipe and fittings within the same gasketed system family.

Key Features

• 4-inch SDR35 PVC construction rated for gravity sewer and storm drain service
• Two-way cleanout design allows rodding and jetting access from two directions
• Gasketed hub connections on all three ports (G x G x G) — no solvent cement required at joints
• Ring-Tite gasketed joint system accommodates pipe movement and reduces leakage risk
• Trench Tough Plus designation indicates suitability for below-grade trench installation under standard soil loads
• PVC material resists corrosion, sewer gases, and typical below-grade soil chemistry

Compatibility

Compatible with 4-inch SDR35 PVC gasketed sewer pipe and fittings. Designed for use within the IPEX Trench Tough Plus and Ring-Tite gasketed pipe system for gravity sewer and drain applications.

Installation Notes

Installation should be performed by a licensed plumber or sewer contractor in accordance with local plumbing codes and ASTM D3034 requirements for PVC sewer pipe and fittings. Gasket seating should be inspected for proper seating and freedom from debris before joint assembly. Thrust blocking or bedding per local code may be required in trench applications. Do not use solvent cement on gasketed ring-tite connections.

Technical Specifications

• Pipe Size: 4 inches
• Pipe Standard: SDR35
• Material: PVC
• Connection Type: Gasketed Hub x Gasketed Hub x Gasketed Hub (G x G x G)
• Configuration: 2-Way Cleanout Tee
• UPC: 62245443806

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 43806
