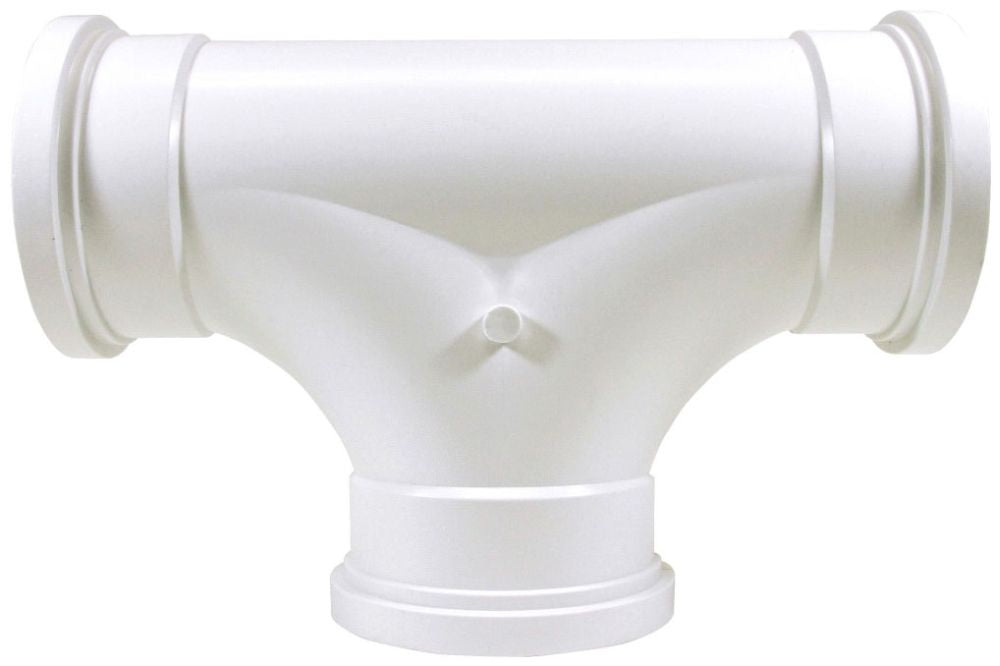

Ipex 43708 6 Inch SDR35 Pvc 2-way Gasketed Cleanout Tee

Product Description

The IPEX 43708 is a 6-inch SDR35 PVC 2-way gasketed cleanout tee designed for sewer and drain applications. Built to SDR35 wall thickness standards, this fitting uses a gasketed (GXGXG) bell-end connection on all three ports, eliminating the need for solvent cement at the joint. It is part of the Trench Tough Plus series with Ring-Tite gasket sealing, making it suitable for underground sewer and storm drain installations. Licensed plumbers and drain contractors install this fitting where mainline access for rodding or inspection is required, typically in trench or below-grade configurations.

This cleanout tee is used in residential and commercial gravity-flow sewer and drain systems. The 2-way configuration allows rodding access in both directions along the pipe run, which is standard practice for mainline sewer cleanouts. Its SDR35 profile is compatible with typical 6-inch sewer lateral and trunk line installations where underground burial depth and soil loading require a rated, full-body PVC fitting.

Key Features

• 6-inch SDR35 PVC construction rated for sewer and drain service
• Gasketed GXGXG bell-end connections on all ports — no solvent cement required at joints
• 2-way cleanout design allows bidirectional rodding access
• Ring-Tite gasket system provides a watertight seal suitable for underground installation
• Trench Tough Plus designation indicates suitability for direct burial in trench conditions

Compatibility

Designed as an OEM-style SDR35 replacement fitting for 6-inch gravity sewer and drain piping systems using gasketed bell-end connections.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the International Plumbing Code (IPC). Ensure the pipe run is depressurized and the work area is properly shored before working in open trenches. Gasket joints require proper lubrication and alignment per the manufacturer seating procedure — do not force or over-drive the spigot end into the bell. Inspect the gasket seat for debris before assembly to ensure a watertight connection.

Technical Specifications

• Pipe Size: 6 inches
• Wall Thickness Rating: SDR35
• Material: PVC
• Connection Type: Gasketed bell-end (GXGXG)
• Configuration: 2-Way Cleanout Tee
• Application: Sewer and drain (gravity flow)
• Series: Trench Tough Plus with Ring-Tite gasket
• UPC: 62245443708

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 43708
