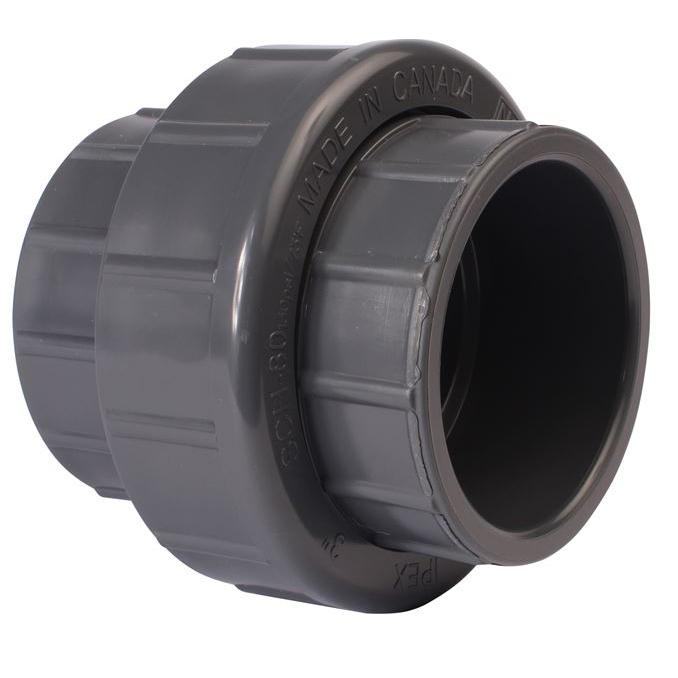

Ipex 36843 Pvc Schedule 80 Socket Union 4 Inches

Product Description

The IPEX 36843 is a 4-inch PVC Schedule 80 socket union designed for industrial and commercial piping systems where chemical resistance and long-term durability are required. Schedule 80 PVC offers thicker walls than Schedule 40, making it suitable for higher-pressure applications. The socket end configuration allows for solvent-cement joining, producing a permanent, leak-tight connection. This fitting is rated for a maximum service temperature of 140 degrees F in pressure service and up to 180 degrees F for intermittent gravity flow. It is installed by licensed plumbers and industrial pipefitters working on process piping, chemical handling, and water treatment systems.

This union is well-suited for residential, commercial, and industrial piping installations where corrosion resistance and chemical compatibility are critical. Typical applications include chemical process lines, water treatment facilities, industrial fluid handling, and potable water systems. The fitting is listed with the National Sanitation Foundation (NSF) and CSA International for use with potable water. Its smooth interior walls minimize friction loss and resist scale and deposit buildup over extended service cycles.

Key Features

• Schedule 80 PVC construction with thicker walls for higher-pressure service
• Maximum service temperature of 140 degrees F in pressure applications and 180 degrees F for intermittent gravity flow
• Resistant to rust, pitting, scale, and corrosion on both interior and exterior surfaces
• Compatible with most acids, alcohols, alkalis, salt solutions, and halogens
• NSF and CSA International listed for potable water use
• Socket union design allows for disassembly and reassembly without cutting pipe

Compatibility

Designed for use in 4-inch Schedule 80 PVC piping systems. Compatible with standard Schedule 80 PVC solvent-cement socket fittings and pipe conforming to applicable ASTM dimensional standards. Listed with NSF and CSA International for potable water applications.

Installation Notes

Installation should be performed by a licensed plumber or qualified pipefitter in accordance with local plumbing codes and ASTM solvent-cement procedures. Shut off and depressurize the system fully before cutting into an existing line. Use only PVC-compatible solvent cement rated for Schedule 80 fittings, and allow full cure time before returning the system to service. The union design permits future disassembly for maintenance without disturbing the solvent-cemented pipe runs.

Technical Specifications

• Size: 4 inches
• Material: PVC (Polyvinyl Chloride)
• Schedule: Schedule 80
• Connection Type: Socket Union
• Max Service Temperature (Pressure): 140 degrees F (60 degrees C)
• Max Service Temperature (Intermittent Gravity Flow): 180 degrees F (82 degrees C)
• Certifications: NSF Listed, CSA International Listed
• Chemical Resistance: Most acids, alcohols, alkalis, salt solutions, halogens

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 36843
