Ipex 36800 BNC Straight Crimp Jack RG-58 RG-141 Times LMR-195 50 Ohm

Product Description

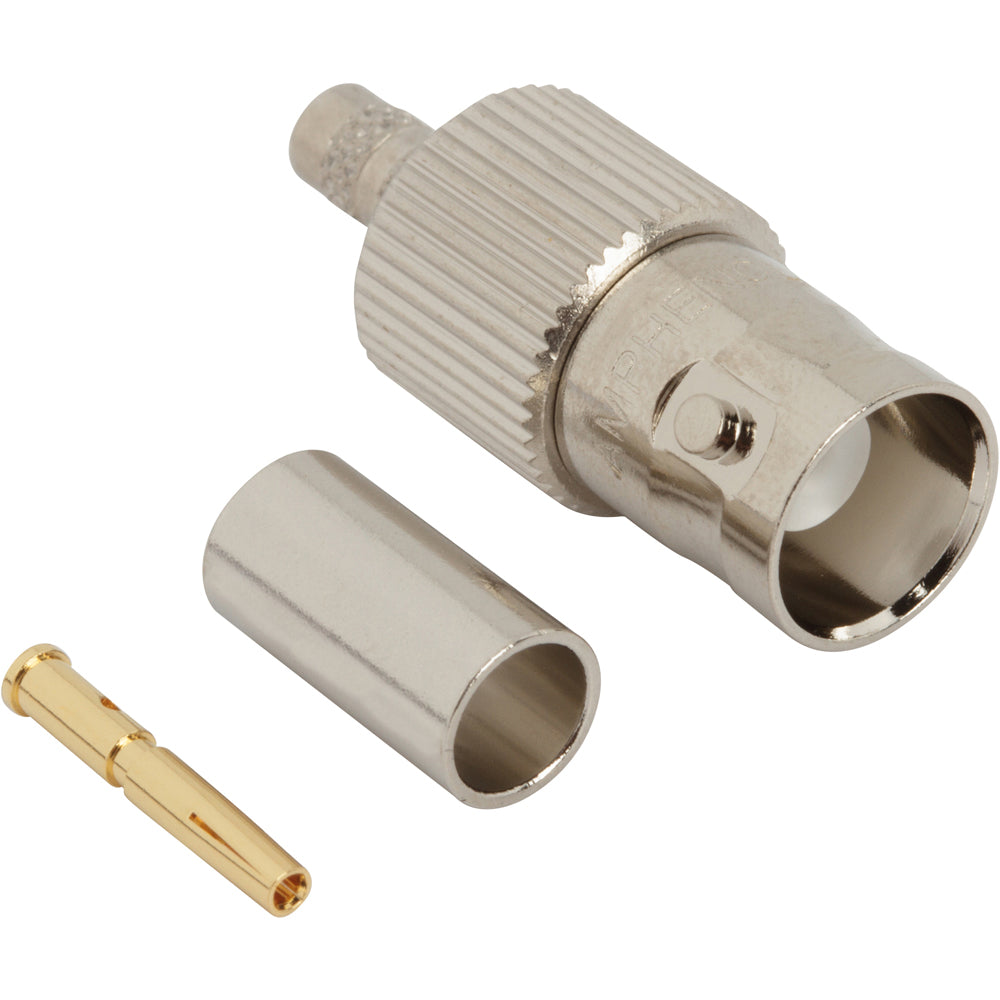

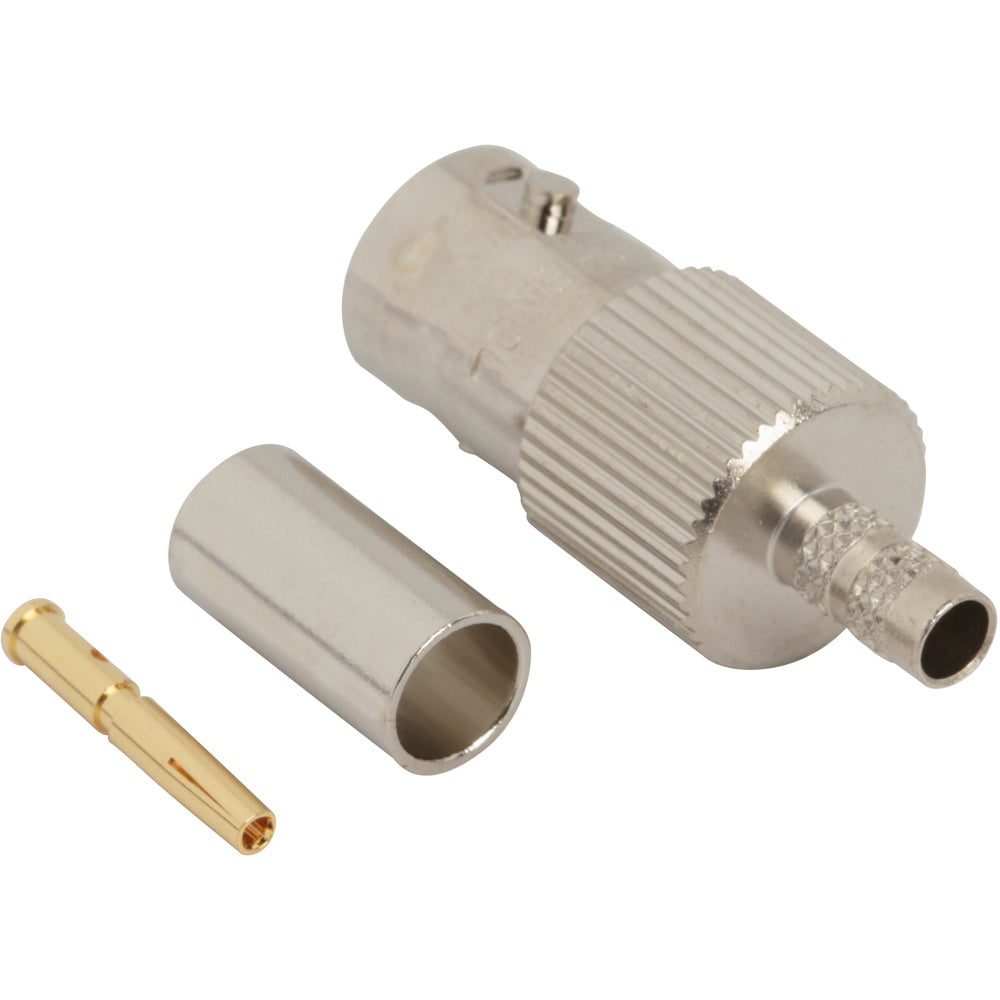

The IPEX 36800 is a BNC straight crimp jack designed for RG-58, RG-141, and Times LMR-195 cables with a 50 Ohm impedance. It features a bayonet coupling mechanism and is suitable for miniature applications. The jack is constructed with a brass body and a phosphor bronze contact.

• Designed for RG-58, RG-141, and Times LMR-195 cables
• Features a bayonet coupling mechanism
• Operating temperature ranges from -40 to 85 degrees Celsius

Product Highlights

This BNC straight crimp jack is ideal for creating secure and reliable cable connections in various applications.

Product Information

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 36800
• Country of Origin: VN

Technical Specifications

• Assembly Tool: CTL-3
• Body Finish: Nickel
• Body Material: Brass
• Cable Type (Terminates To): RG-58, RG-141, Times LMR-195, Times LMR-200-LLPL, Belden 7806A, Belden 8219, Belden 8240, Belden 8259, Belden 8262, Belden 9201, Belden 9203, Belden 9310, Belden 9311
• Contact Finish: Gold
• Contact Material: Phosphor Bronze
• Contact Termination: Crimp
• Coupling Mechanism: Bayonet
• Frequency (Max GHz): 4
• Gender: Jack
• Impedance (Ohms): 50
• Insulator Material: Delrin
• IP Rating: Not Rated
• Isolated: No
• Low PIM: No
• Mating Cycles (Min): 500
• Mil Qualified: Not Mil Qualified
• Non Magnetic: Contains Magnetic Materials
• Orientation: Straight
• Panel Mounting Feature: Not Applicable
• PFAS: PFAS Status Undetermined
• Ports: 1 (Single Port)
• Size Category: Miniature
• Temp (Max Degrees Celsius): 85
• Temp (Min Degrees Celsius): -40
• Termination Style: Cable - Crimp
