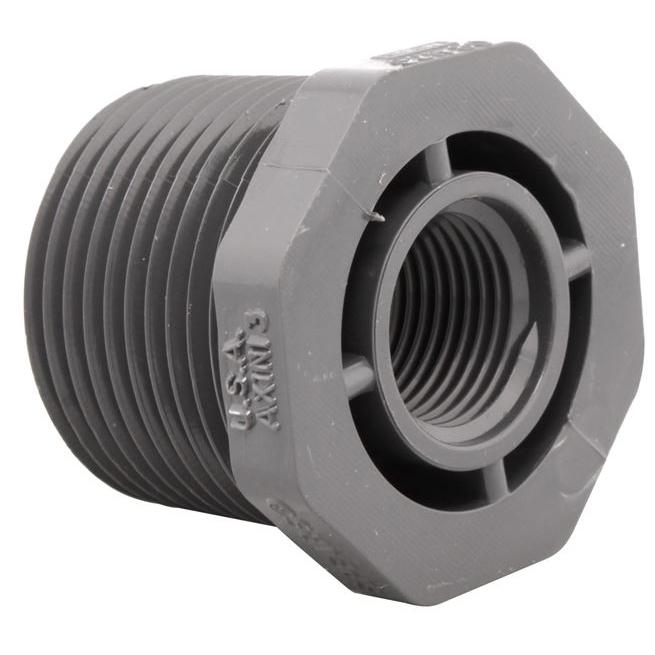

Ipex 36657 Pvc Schedule 80 Male Female Bushing 1x3/4 in

Product Description

The IPEX 36657 is a PVC Schedule 80 male x female reducing bushing used to transition from a 1-inch male thread to a 3/4-inch female thread in industrial and commercial piping systems. Built to IPEX Xirtec PVC system standards, this bushing is engineered and manufactured to strict dimensional and performance tolerances. Schedule 80 PVC offers greater wall thickness and pressure rating than Schedule 40, making it appropriate for demanding chemical process and industrial fluid handling applications. Licensed plumbers and pipefitters install this fitting where threaded piping reductions are required without the weight, corrosion, or cost of metal alternatives.

The IPEX 36657 is suited for industrial process piping, chemical distribution systems, and potable water installations where threaded PVC fittings are specified. Its chemical resistance profile makes it a reliable choice in systems carrying acids, alcohols, alkalis, salt solutions, and halogens. As part of the Xirtec PVC system, this bushing is designed to be sourced, installed, and backed within a single-manufacturer pipe, valves, and fittings package, reducing compatibility concerns common when mixing components from multiple suppliers.

Key Features

• Schedule 80 PVC construction provides increased wall thickness for higher pressure-rated service
• Outstanding resistance to most acids, alcohols, alkalis, salt solutions, and halogens
• Listed with NSF and CSA International for use with potable water systems
• Resistant to rust, pitting, scaling, and corrosion — maintains smooth interior bore over service life
• Produced using significantly less energy than comparable steel or steel-alloy fittings
• Male x female threaded configuration for in-line size reduction without additional fittings

Compatibility

Designed for use within the IPEX Xirtec PVC pipe, valves, and fittings system. Suitable as an OEM-style threaded reducing bushing in Schedule 80 PVC piping assemblies for industrial and potable water applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local plumbing codes. Shut off flow and depressurize the line before removing or installing any threaded fitting. Use thread sealant or PTFE tape rated for PVC and the specific media being conveyed. Do not overtighten threaded PVC connections, as excessive torque can crack the fitting hub.

Technical Specifications

• Material: PVC (Polyvinyl Chloride)
• Schedule: Schedule 80
• Connection Type: Male x Female Threaded (MPT x FPT)
• Inlet Size: 1 inch (male)
• Outlet Size: 3/4 inch (female)
• Certifications: NSF Listed, CSA International

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 36657
