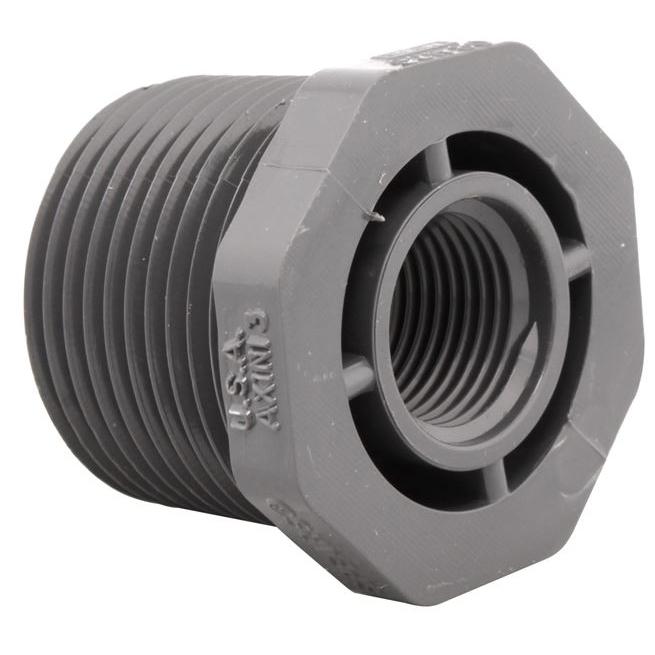

Ipex 36649 Pvc Sch 80 Male X Female Bushing 1/2 X 3/8 in

Product Description

The IPEX 36649 is a PVC Schedule 80 male-by-female reducing bushing, designed for use in industrial and commercial piping systems where chemical resistance and pressure durability are required. Sized at 1/2 inch male by 3/8 inch female, it allows a reduction in line size within a threaded assembly. Schedule 80 wall thickness provides greater pressure ratings than Schedule 40 counterparts, making it appropriate for demanding process piping environments. This fitting is manufactured to strict dimensional and performance standards and is listed with the National Sanitation Foundation (NSF) and CSA International for use with potable water systems. Licensed plumbers and pipefitters install this fitting in both industrial process lines and general plumbing applications.

The IPEX 36649 is suited for industrial process piping, chemical handling systems, water treatment lines, and commercial plumbing installations where a threaded male-to-female bushing reduction is needed. Its PVC construction makes it a practical alternative to metal fittings in corrosive environments, including systems handling acids, alcohols, alkalis, salt solutions, and halogens. It is appropriate for both new construction and retrofit applications where Schedule 80 PVC threaded fittings are specified.

Key Features

• Outstanding chemical resistance to most acids, alcohols, alkalis, salt solutions, and halogens
• NSF and CSA International listed for use with potable water
• Schedule 80 PVC wall thickness for higher pressure performance versus Schedule 40
• Smooth interior bore resists rust, pitting, scaling, and corrosion buildup
• Manufactured with significantly less energy than equivalent steel or steel-alloy fittings
• Male-by-female threaded configuration allows in-line reduction without additional adapters

Compatibility

Designed as an OEM-style replacement and standard fitting for Schedule 80 PVC threaded piping systems in industrial process and commercial plumbing applications.

Installation Notes

Installation should be performed by a licensed plumber or qualified pipefitter in accordance with applicable plumbing codes, including IPC requirements for PVC threaded fittings. Shut off system pressure and drain the line before disassembling any threaded joint. Use PTFE thread tape or an approved thread sealant rated for PVC on all male threads. Do not overtighten threaded PVC fittings, as excessive torque can crack the fitting body.

Technical Specifications

• Material: PVC
• Schedule: Schedule 80
• Connection Type: Male x Female Threaded (Bushing)
• Inlet Size: 1/2 inch (male)
• Outlet Size: 3/8 inch (female)
• Certifications: NSF Listed, CSA International Listed

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 36649
