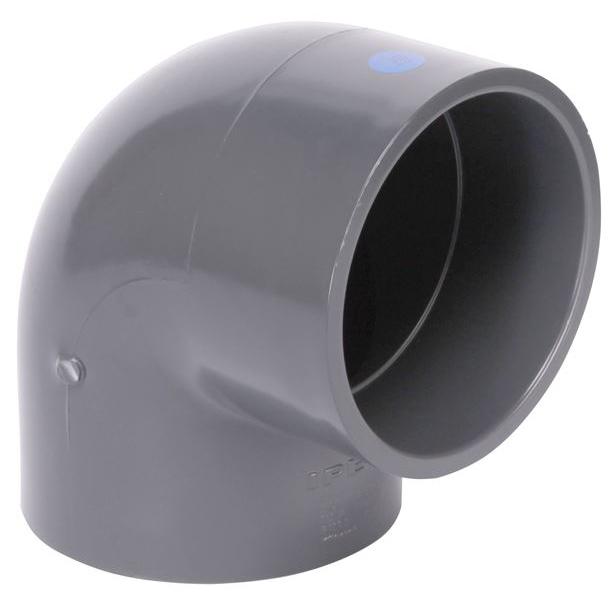

Ipex 36191 Pvc Sch 80 90 Degree Elbow Socket X Socket 6 in

Product Description

The IPEX 36191 is a 6-inch PVC Schedule 80 90-degree elbow with a socket-by-socket end configuration, designed for industrial and commercial pressure piping systems. It is manufactured to Schedule 80 dimensional standards, providing greater wall thickness and pressure capacity than Schedule 40 fittings of the same size. The fitting handles a maximum service temperature of 140 degrees F in continuous pressure service and up to 180 degrees F in intermittent gravity-flow applications. The smooth interior bore resists rust, scale, and corrosion buildup. Licensed plumbers and pipefitters install this fitting in process piping, chemical handling, and industrial fluid conveyance systems.

This elbow is suited for industrial process piping, chemical distribution lines, and other applications where metallic fittings are unsuitable due to corrosion risk. It performs well with a wide range of acids, alcohols, alkalis, salt solutions, and halogens. The fitting is also listed by the National Sanitation Foundation (NSF) and CSA International for use with potable water systems, broadening its application to municipal and commercial water distribution where Schedule 80 wall thickness is specified.

Key Features

• Schedule 80 wall thickness provides higher pressure ratings compared to Schedule 40 PVC fittings of the same size
• Maximum service temperature of 140 degrees F in pressure service and 180 degrees F in intermittent gravity flow
• Smooth interior bore resists rust, pitting, scale, and corrosion in virtually all service environments
• Chemical resistance to most acids, alcohols, alkalis, salt solutions, and halogens
• NSF and CSA International listed for potable water service
• Socket-by-socket end connections accept solvent-cement joining per standard PVC cement procedures

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 6-inch Schedule 80 PVC piping systems using solvent-cement socket connections in industrial, chemical process, and commercial water service applications.

Installation Notes

Installation must be performed by a licensed plumber or qualified pipefitter in accordance with applicable plumbing codes such as the IPC or local authority requirements. Depressurize and drain the piping system fully before cutting into any existing line. Use only solvent cement and primer rated for Schedule 80 PVC and appropriate for the service fluid. Allow full cure time per the cement manufacturer before restoring pressure to the system.

Technical Specifications

• Material: PVC
• Schedule: Schedule 80
• Nominal Size: 6 inches
• Fitting Type: 90 Degree Elbow
• End Connections: Socket x Socket
• Max Service Temperature (Pressure): 140 degrees F (60 degrees C)
• Max Service Temperature (Intermittent Gravity Flow): 180 degrees F (82 degrees C)
• Certifications: NSF Listed, CSA International Listed

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 36191
