Ipex 36181 Pvc Sch 80 90 Degree Elbow Socket 1/2 Inch

Product Description

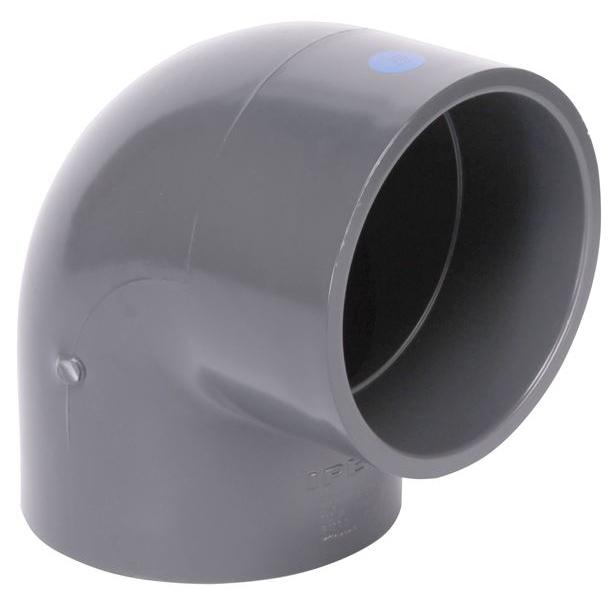

The IPEX 36181 is a 1/2 inch PVC Schedule 80 90-degree elbow with socket x socket end connections. Designed for industrial and commercial piping systems, this fitting changes flow direction by 90 degrees while maintaining the pressure and chemical resistance expected from Schedule 80 PVC construction. It is rated for a maximum service temperature of 140 degrees F in pressure service and up to 180 degrees F for intermittent gravity flow. The socket x socket configuration allows solvent-cement jointing, making it a standard connection method for plumbers and pipefitters working on chemical process, industrial, or potable water systems. Corrosion resistance and a smooth interior bore are inherent to the PVC material.

This elbow is suited for residential and commercial potable water systems, chemical process piping, and industrial fluid handling applications where metal corrosion is a concern. The Schedule 80 wall thickness provides additional pressure capacity compared to Schedule 40 fittings, making it appropriate for higher-pressure service lines. It is listed with NSF and CSA International for use with potable water. Plumbers and pipefitters install this fitting in process plants, water treatment facilities, industrial plants, and commercial mechanical systems where chemical resistance and long service life are required.

Key Features

• Schedule 80 PVC construction provides greater wall thickness and higher pressure ratings than Schedule 40
• Maximum service temperature of 140 degrees F in pressure service; up to 180 degrees F for intermittent gravity flow
• Smooth interior bore resists rust, pitting, scaling, and corrosion throughout service life
• Resistant to most acids, alcohols, alkalis, salt solutions, and halogens
• NSF and CSA International listed for potable water service
• Socket x socket ends accept standard solvent-cement jointing

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1/2 inch Schedule 80 PVC piping systems using socket-end solvent-cement connections.

Installation Notes

Installation is performed by licensed plumbers or pipefitters following applicable IPC and local plumbing codes. Before making joints, ensure the pipe and fitting socket surfaces are clean, dry, and free of burrs. Use only PVC-rated primer and solvent cement appropriate for Schedule 80 fittings and allow adequate cure time before pressurizing the system. Shut off and depressurize the line completely before cutting into an existing system.

Technical Specifications

• Material: PVC
• Schedule: Schedule 80
• Size: 1/2 inch
• Connection Type: Socket x Socket
• Angle: 90 degrees
• Max Service Temperature (Pressure): 140 degrees F (60 degrees C)
• Max Service Temperature (Gravity Flow, Intermittent): 180 degrees F (82 degrees C)
• Certifications: NSF Listed, CSA International Listed

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 36181
