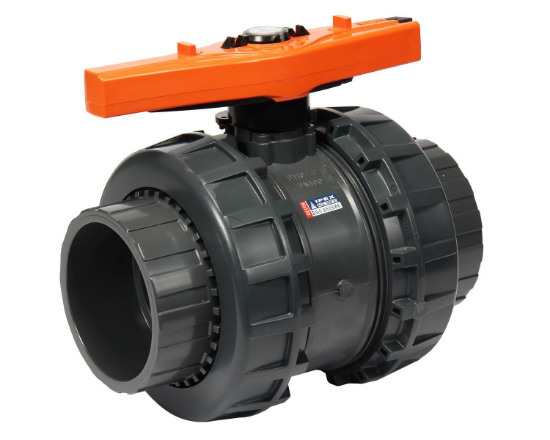

Ipex 353015 Vxe Series 4 inches True Union Ball Valve

Product Description

The IPEX 353015 VXE Series true union ball valve features an ultra-compact double block design and full port bi-directional operation. The true union design allows for easy removal from the piping system and full servicing. It has PTFE seats, EPDM seals, and socket end connections. Rated up to 232 psi at 73 Degrees F.

• Ultra-compact valves
• Full-port, bi-directional double block design
• EasyFit multifunction handles doubles as a tool for ball seat adjustment

Product Highlights

The IPEX VXE series true union ball valves are designed for industrial, general purpose and O.E.M. applications.

Product Information

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 353015
• Country of Origin: Italy

Technical Specifications

• Brand: Ipex
• MPN: 353015
• UPC: 10622454423661
• Category: Business & Industrial
• End Connection: Socket x Threaded
• Material Type: PVC
• Maximum Temperature: 73
• Specifications - NSF: NSF 61
• Specifications - NSF Certified: Yes
• Style Name: Xirtec VXE Series
• Valve Operator: True Union
• Valve Seat Material: PTFE
• Valve Size: 4 in.
• Valve Type: Ball Valve
• Pressure - High: 232 psi
• Valve Body Style: True Union
• Material: Plastic;Rubber
• Size: 4 Inch
• Pressure Rating: 232 psi
• Port: Full
• Media: Water
• Body Material: PVC
• Ball Material: PVC
• Softgoods Material: EPDM O-Ring, PTFE Seat
• Series: VXE
