Ipex 353013 vxe true union ball valve 3 in. replacement MPN

Product Description

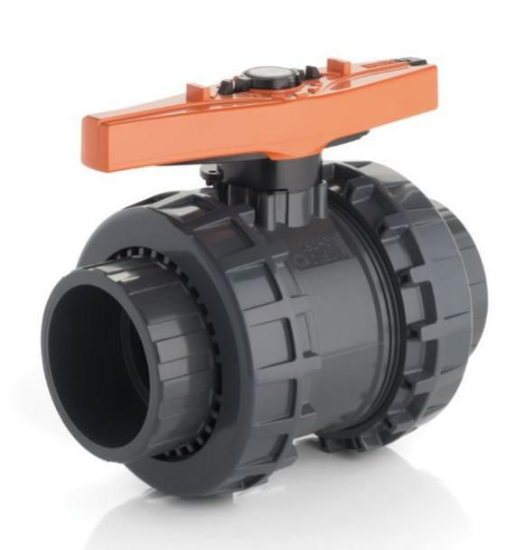

The IPEX 353013 VXE True Union Ball Valve is designed with an ultra-compact double block and full port bi-directional operation. The true union design allows for easy removal from the piping system and full servicing. Features a threaded seat stop carrier for improved seal integrity.

• Rated up to 232 psi at 73 Degrees F and available in sizes 3/8 in. to 4 in.
• Ultra-compact valves
• Full-port, bi-directional double block design

Product Highlights

This PVC valve features PTFE seats, EPDM seals, and socket end connections. The EasyFit multifunction handle doubles as a tool for ball seat adjustment.

Product Information

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 353013
• Country of Origin: Italy

Technical Specifications

• End Connection: Socket
• End Connection 1: Socket
• End Connection 2: Socket
• Material Type: PVC
• Maximum Temperature: 73
• Pressure - High: 150 psi
• Recommended Valve Application: General Purpose;Industrial
• Schedule: 80
• Specifications - ANSI: ANSI B1.20.1;ANSI B16.5
• Specifications - ASTM: ASTM D-1784;ASTM D-2466;ASTM D-2467;ASTM F-439;ASTM D-2464;ASTM F-437;ASTM D-1498
• Specifications - NSF: NSF 61
• Specifications - NSF Certified: Yes
• Style Name: Xirtec VXE Series
• Valve Operator: True Union
• Valve Port Opening: Full Port
• Valve Seat Material: EPDM;PTFE
• Valve Size: 3 in.
• Valve Stem: Blowout-Proof
• Valve Type: Ball Valve
• Application: Industrial
• Product Type: Ball Valves
• Pressure - Maximum: 232 psi
• Valve Body Style: True Union
• Material: Plastic;Rubber
• Size: 3 in.
