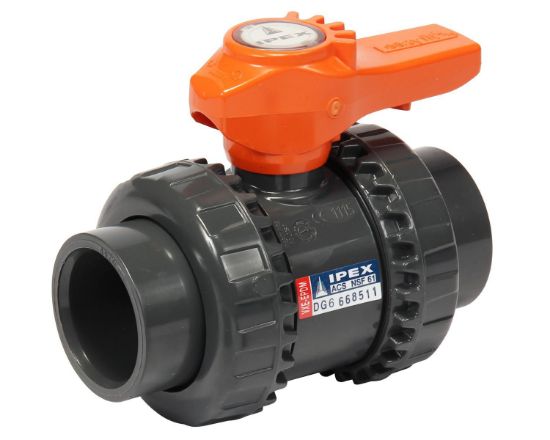

Ipex 353007 vxe true union ball valve pvc epdm 1-1/4 inches

Product Description

The IPEX 353007 VXE True Union Ball Valve features an ultra-compact double block design and full port bi-directional operation. The true union design allows for easy removal from the piping system for servicing. A threaded seat stop carrier provides improved seal integrity. This PVC valve features PTFE seats, EPDM seals, and one socket and one threaded end connection.

• Ultra-compact double block design
• Full port bi-directional operation
• True union design allows easy removal and servicing

Product Highlights

This valve is rated to 232 psi at 73 Degrees F. The EasyFit multifunction handle doubles as a tool for ball seat adjustment and tightening union nuts.

Product Information

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 353007
• Country of Origin: Italy

Technical Specifications

• Nominal Size: 1-1/4 in
• Pressure Rating: 232 psi
• Body Material: PVC
• End Style: Socket x Thread
• Series: VXE
• Softgoods Material: EPDM
• Temperature Rating: 73 deg F
• Type: True Union
• Colour/Finish Category: Greys
• Colour/Finish Name: Dark Grey
• End Connection: Socket x Threaded
• End Connection 1: Socket
• End Connection 2: Threaded
• Material Type: PVC
• Maximum Temperature: 73
• Pressure - High: 232 psi
• Schedule: 80
• Specifications - ANSI: ANSI B1.20.1;ANSI 61-G
• Specifications - ASTM: ASTM D-1784;ASTM D-2464;ASTM D-2466;ASTM D-2467;ASTM F-437;ASTM F-439;ASTM F-1498
• Specifications - NSF: NSF 61 Annex G
• Specifications - NSF Certified: Yes
• Style Name: Xirtec VXE Series
• Valve Operator: True Union Lever
• Valve Port Opening: Full Port
• Valve Seat Material: PTFE
• Valve Size: 1-1/4 in.
• Valve Stem: Blowout-Proof
• Valve Type: Ball Valve
• Application: Commercial;Industrial
• Origin: Italy
• Product Type: Ball Valves
• Valve Body Style: True Union Lever
• Material: Plastic;Rubber
• Size: 1-1/4 in.
