Ipex 353005 vxe tu pvc easyfit xirtec140 ball valve 1 inches replacement mpn

Product Description

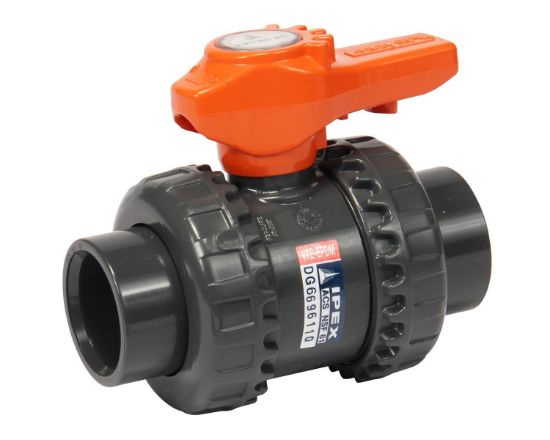

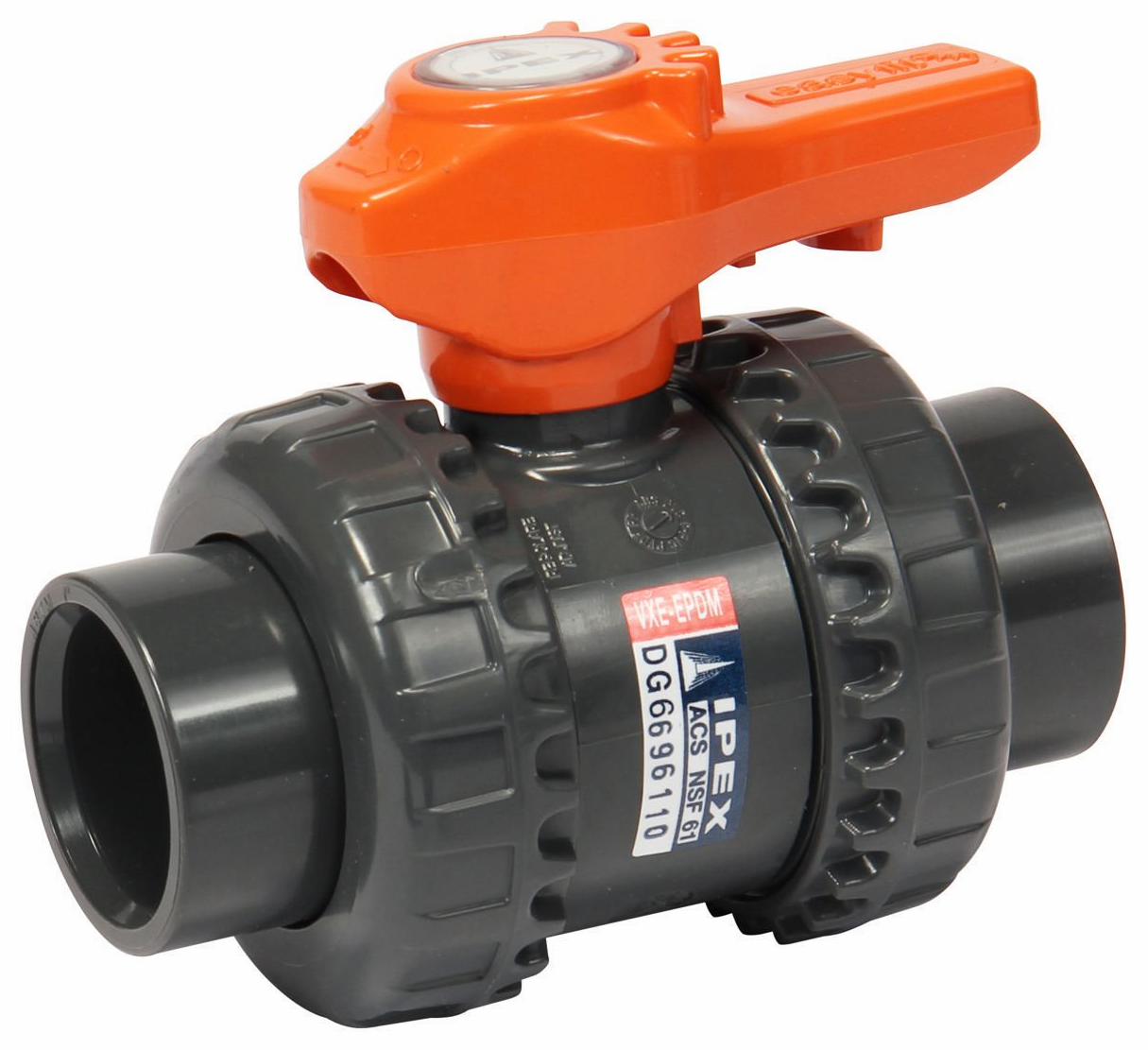

The IPEX 353005 VXE TU PVC EasyFit Xirtec140 Ball Valve features an ultra-compact double block design and full port bi-directional operation. The true union design allows for easy removal from the piping system and full servicing. This PVC valve features PTFE seats, EPDM seals, and one socket and one threaded end connection.

• Rated up to 232 psi at 73 Degrees F and available in sizes 3/8" to 4"
• Ultra-compact valves
• Full-port, bi-directional double block design

Product Highlights

The IPEX Xirtec140 ball valve has an EasyFit multifunction handle that doubles as a tool for ball seat adjustment.

Product Information

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 353005
• Country of Origin: Italy

Technical Specifications

• Connection Size: 1" x 1"
• Connection Type: Hub x FPT
• Material: PVC
• Colour/Finish Category: Greys
• Colour/Finish Name: Dark Grey
• End Connection: Socket x Threaded
• End Connection 1: Socket
• End Connection 2: Threaded
• Material Type: PVC
• Maximum Temperature: 73
• Pressure - High: 232 psi
• Schedule: 80
• Specifications - ANSI: ANSI B1.20.1;ANSI 61-G
• Specifications - ASTM: ASTM D-1784;ASTM D-2464;ASTM D-2466;ASTM D-2467;ASTM F-437;ASTM F-439;ASTM F-1498
• Specifications - NSF: NSF 61 Annex G
• Specifications - NSF Certified: Yes
• Style Name: Xirtec VXE Series
• Valve Operator: True Union Lever
• Valve Port Opening: Full Port
• Valve Seat Material: PTFE
• Valve Size: 1 in.
• Valve Type: Ball Valve
• Application: Commercial;Industrial
• Origin: Italy
• Product Type: Ball Valves
• Height: 3-43/100 in.
• Length: 5-51/100 in.
• Valve Body Style: True Union Lever
• Width: 4-1/2 in.
• Ball Material: PVC
• Body Material: PVC
• Color: Dark Gray
• Flow Coefficient (Cv): 53.9 Cv
• Handle Material: PVC
• Inlet to Outlet Length: 4.61 in
• Lead-Free/Contains Lead: Contains Lead
• Material Standard: ASTM D2464, ASTM D2466, ASTM D2467, ASTM F1498
• Nominal Size: 1 in
• Opening Size: 1.32 in
• Operator Type: Lever Handle
• Port Type: Full
• Pressure Rating: 232 psi
• Seal Material: EPDM
• Series: VXE Series
• Softgoods Material: EPDM
• Stem Material: PVC
• Top to Inlet Center: 2.8 in
• Trim Material: PTFE/PVC
