Ipex 353003 Vxe True Union Ball Valve Pvc Epdm 3/4 inches Socket/Thread Easyfit Xirtec-140

Product Description

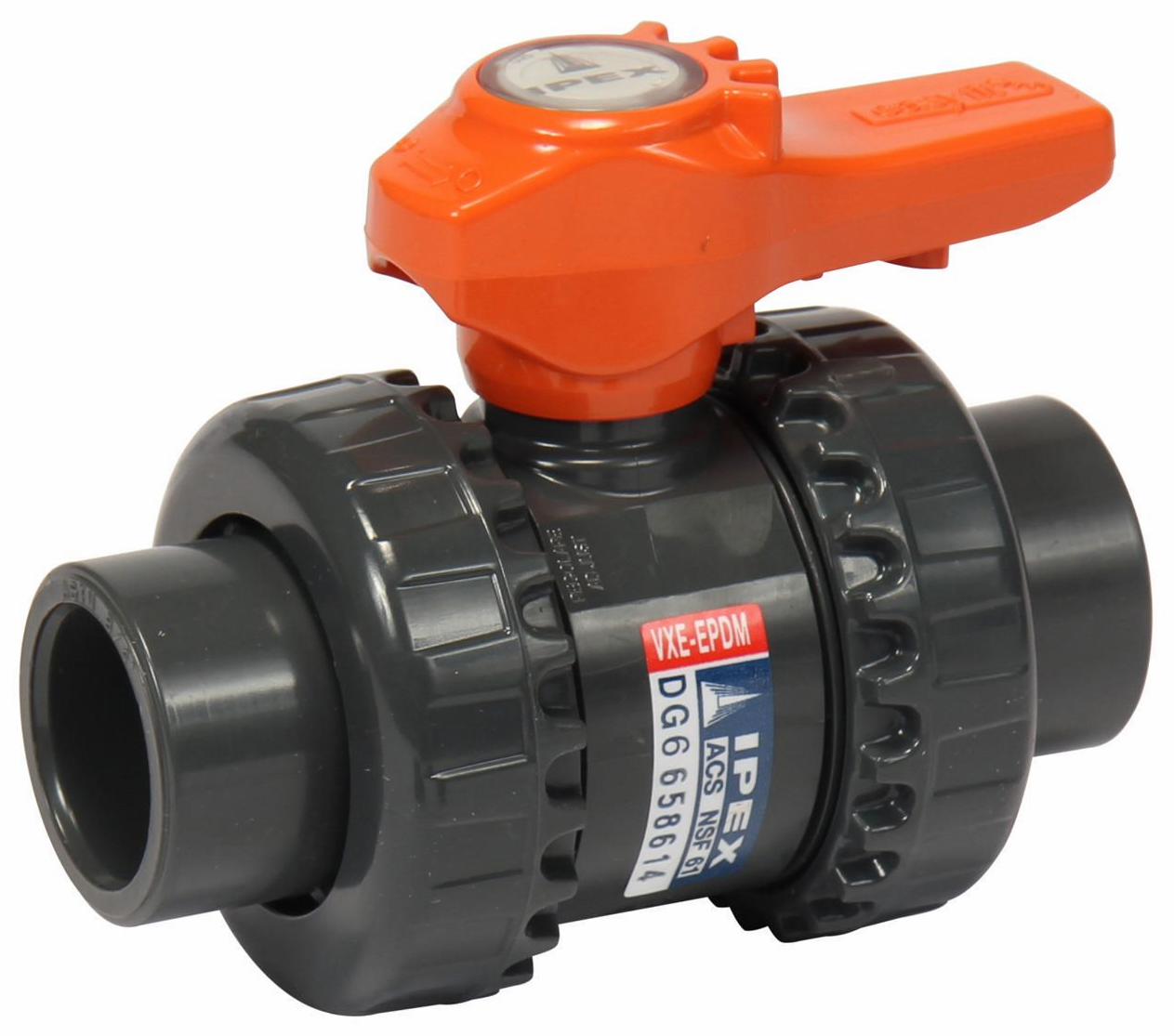

The IPEX 353003 VXE True Union Ball Valve features a compact double block design and full port bi-directional operation. The true union design allows for easy removal and servicing. This PVC valve includes PTFE seats and EPDM seals with one socket and one threaded end connection. It is suitable for various applications.

• Rated up to 232 psi at 73 Degrees F and available in sizes 3/8" to 4"
• Ultra-compact valves
• EasyFit multifunction handles doubles as a tool for ball seat adjustment

Product Highlights

This valve is designed for plant water supply, water treatment, and chemical handling.

Product Information

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 353003
• Country of Origin: United States

Technical Specifications

• Brand: IPEX
• MPN: 353003
• Connection Size: 3/4" x 3/4"
• Connection Type: Hub x FPT
• Inlet to Outlet Length: 4.13 in
• Nominal Size: 3/4 in
• Operator Type: EasyFit Multi-Function Handle
• Pressure Rating: 232 psi
• Ball Material: PVC
• Body Material: PVC
• Media: Water
• Orifice Size: 1.05 in
• Port Type: Full
• Series: VXE
• Softgoods Material: EPDM
• Top to Inlet Center: 2.44 in
• Trim Material: PVC Stem and PTFE Seat
• Pressure Class: SCH 80
• Handle Material: PVC
• Stem Material: PVC
• Seat Material: Teflon
• Seal Material: EPDM
• Industry Standards: ASTM D1784, ASTM D2466, ASTM D2467, ASTM F439, ASTM D2464, ASTM F437, ASTM D1498, ANSI B1.20.1, ANSI B16.5
• Lead Free: No
