Ipex 353001 1/2 S/T EPDM True Union PVC Ball Valve

Product Description

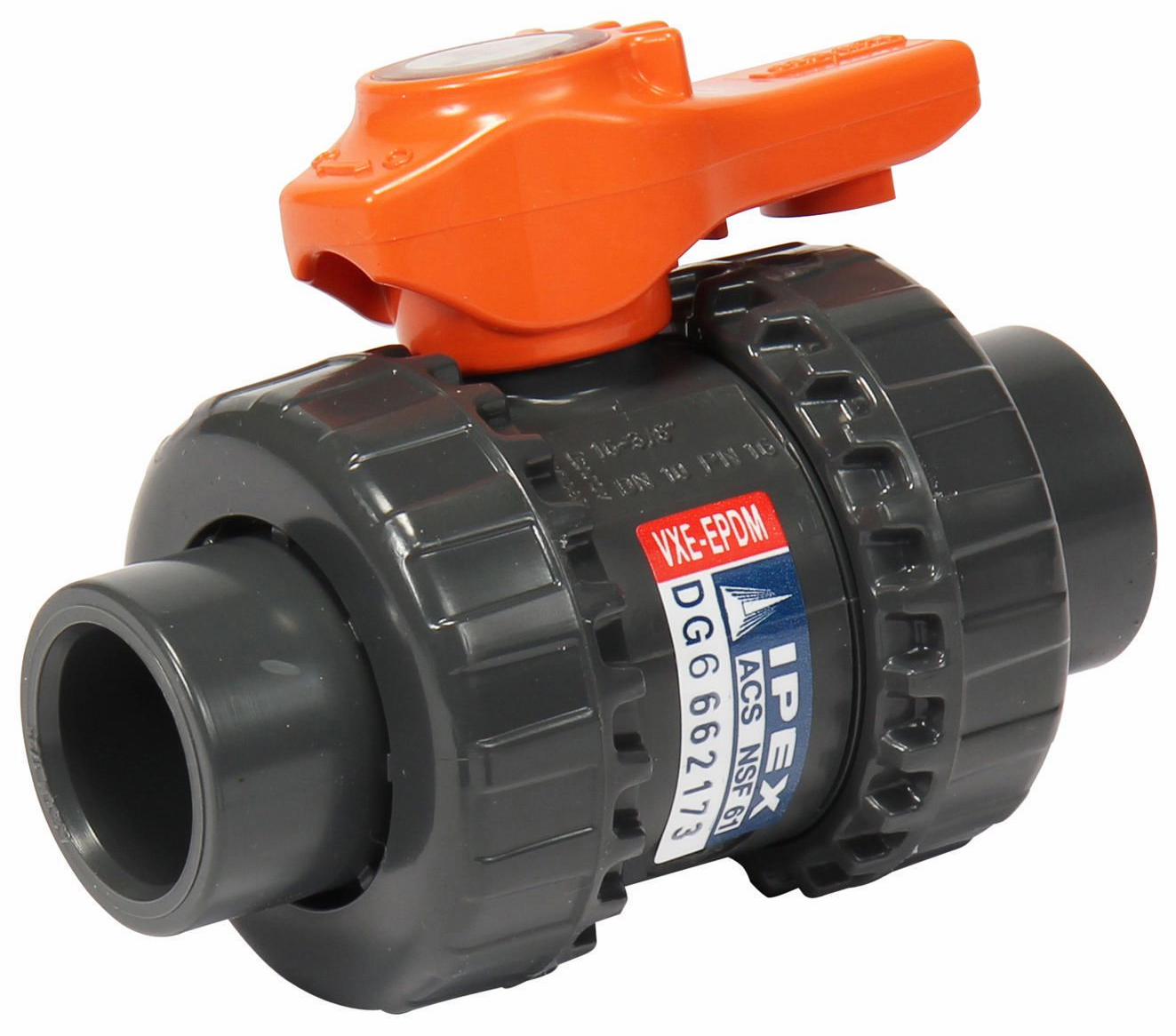

The IPEX 353001 VXE True Union Ball Valve with a 1/2 in Nominal, FNPT x IPS End Style, PVC Body, and Full Port with EPDM Softgoods. The true union design allows for easy removal from the piping system for full servicing. The EasyFit multifunction handle doubles as a tool for ball seat adjustment and tightening union nuts.

• Ultra-compact valves
• Full port, bi-directional double block design
• EASYFIT multifunction handle doubles as a tool for ball seat adjustment

Product Highlights

This PVC valve features PTFE seats, EPDM seals and one socket and one threaded end connection.

Product Information

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 353001

Technical Specifications

• Connection Type: FNPT x IPS
• Inlet to Outlet Length: 3.78 in
• Nominal Size: 1/2 in
• Operator Type: EasyFit Multi-Function Handle
• Pressure Rating: 232 psi
• Ball Material: PVC
• Body Material: PVC
• Media: Water
• Orifice Size: .84 in
• Port Type: Full
• Series: VXE
• Softgoods Material: EPDM
• Top to Inlet Center: 1.93 in
• Trim Material: PVC Stem and PTFE Seat
• Connection Size: 1/2" x 1/2"
• Material: PVC
• Flow Coefficient (Cv): 14 Cv
• Handle Material: PVC
• Lead-Free/Contains Lead: Contains Lead
• Material Standard: ASTM D2464, ASTM D2466, ASTM D2467, ASTM F1498
• Opening Size: 0.84 in
• Seal Material: EPDM
• Seat Material: PTFE
• Stem Material: PVC
• Type: True Union
• End Connection: Socket x Threaded
• Standard/Approvals: ASTM D1784, ANSI B1.20.1
