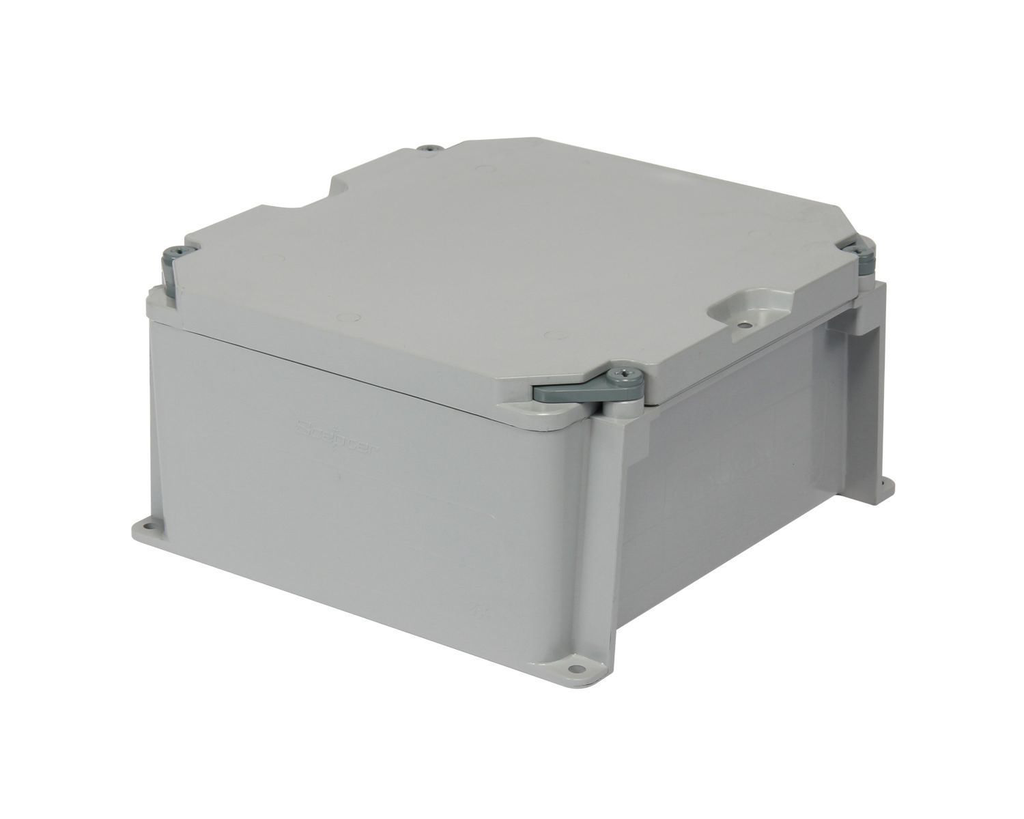

IPEX 277006 8 x 8 x 4 Inch Junction Box NEMA 1/2/3R/4/4X/6/6P/12/13

Product Description

The IPEX 277006, an eight by eight by four inch PVC junction box, is ideal for various applications. It is designed for both indoor and outdoor use. This junction box is made of PVC, offering durability and resistance to impact, water, and chemicals. It meets NEMA ratings 1, 2, 3R, 4, 4X, 6, 6P, 12, and 13, making it suitable for different environmental conditions. The Scepter junction box features a completely non-metallic design, eliminating corrosion issues commonly associated with metal products.

• Reliable construction from PVC material
• Designed for both outdoor and indoor use
• Molded mounting feet for easy installation

Product Highlights

The IPEX 277006 junction box is designed for robust performance in demanding environments. It includes integrated gaskets, molded feet, and built-in gridlines for easy installation and access.

Product Information

Standard Information

• Brand: IPEX, Inc.
• Manufacturer: Ipex USA, LLC

Technical Specifications

• MPN: 277006
• Material: PVC
• Size: 8 x 8 x 4 inches
• Color: Gray
• Weight: 1.792 kg
• Dimensions: 9.58 inches L x 9.56 inches W x 4.9 inches D
• Capacity: 293.19 cu-in
• Temperature Range: -40 to 122 degrees Fahrenheit
• Applications: Suitable for indoor and outdoor use
• Standards/Approvals: UL 50/50E, CSA 94.1/94.2, CSA C22.2 No 40, CSA C22.2 No 85, UL 94V-0
