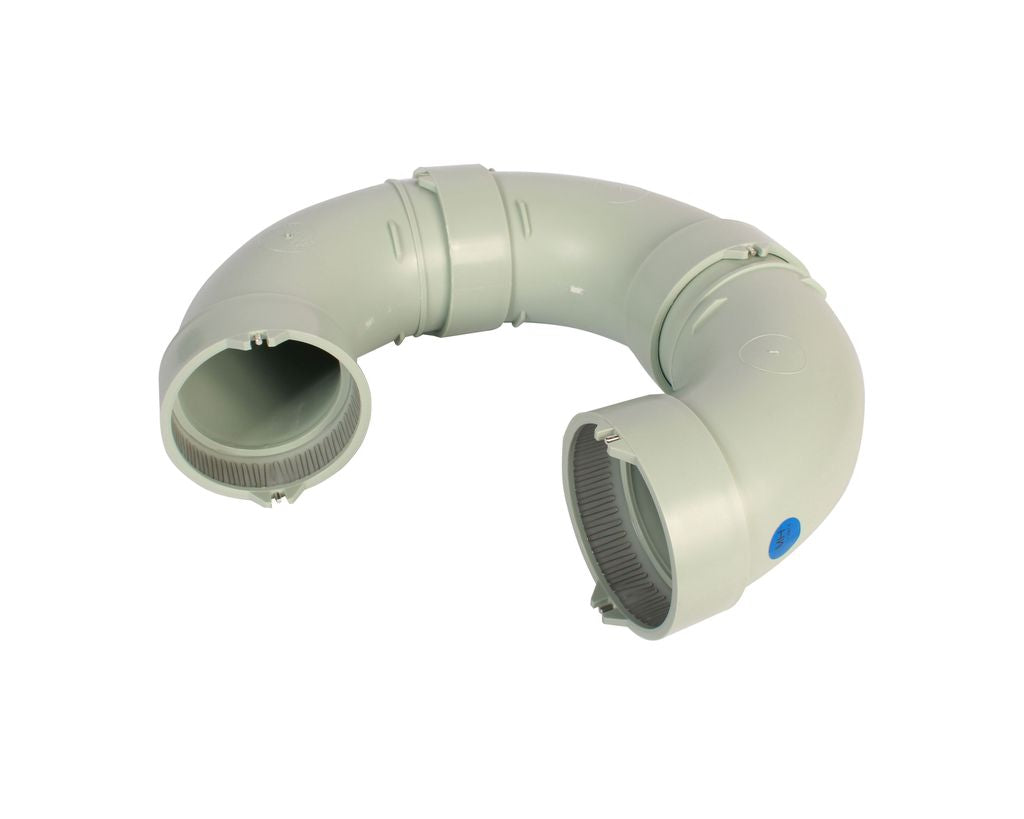

Ipex 257564 Enfield electrofusion pipe trap, 4 in, polypropylene

Product Description

The IPEX 257564 Enfield™ electrofusion fitting is molded with an integral resistance wire in the socket. Jointing is completed by energizing the resistance wire via a microprocessor-controlled Enfusion Control Unit. It is made from polypropylene with an operating temperature range from -10 to 212 deg F.

• Positive reliable joints made in 2 minutes - installation time is reduced
• Several joints can be made at one time
• Proven reliability for over a decade

Product Highlights

The IPEX Enfield™ electrofusion pipe trap offers unprecedented control of jointing with controlled fit, temperature, and time, ensuring secure joints and repeatability.

Product Information

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 257564
• Country of Origin: CANADA

Technical Specifications

• Fitting/Connector Type: Trap
• Material: Polypropylene
• Nominal Size: 4 IN
• Temperature Rating: -10 to 212 deg F
• Type: Enfusion
• Sub Brand: Enfield
• Schedule: SCH 40
• Material Standard: ASTM D4101
• Finish/Color: Green
• Method Of Manufacturer: Electrofusion
• Industry Standards: UL Listed, UPC File Number: 1103, 3455, IAPMO Certified, NSF 14 Standard, CSA B181.3 Certified
• Flammability rating: V-1
• Item Name: P-Trap
• Connection Type: Enfusion Socket
