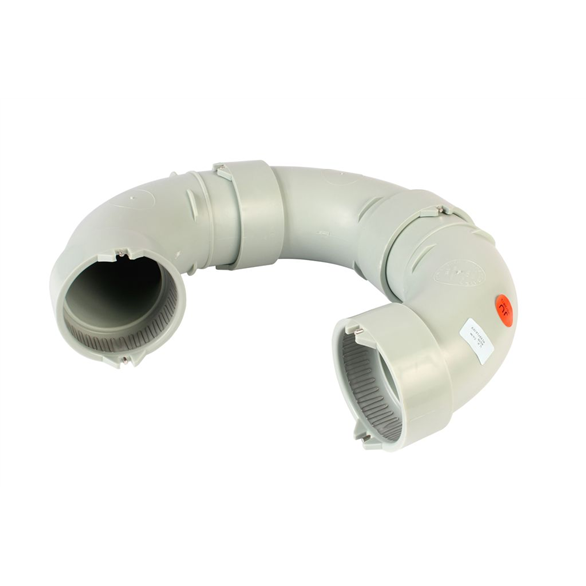

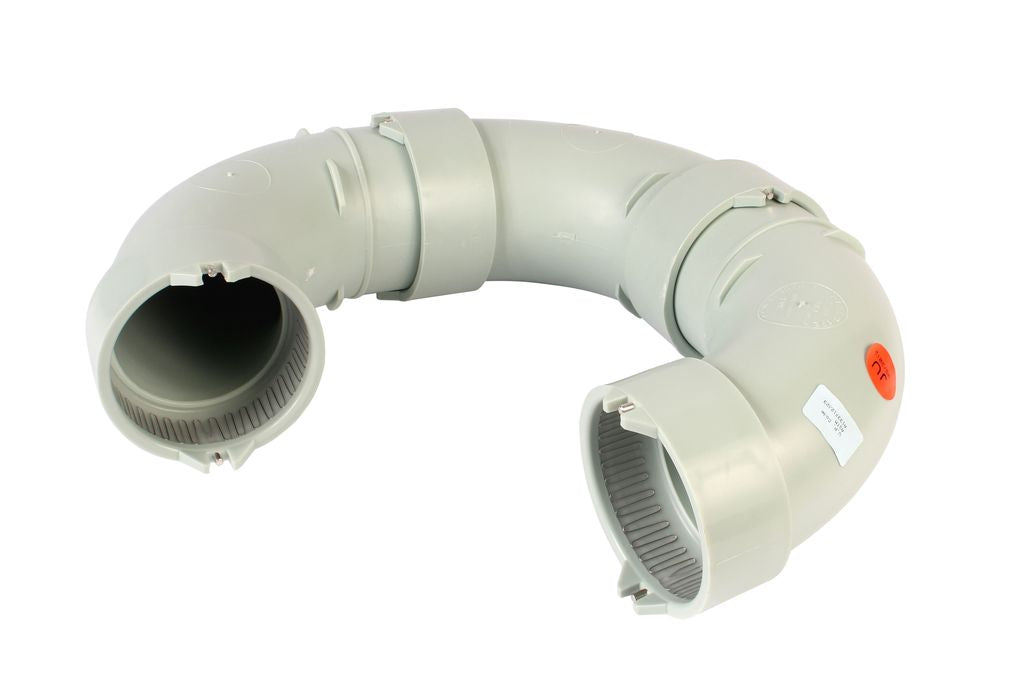

Ipex 257563 Enfield electrofusion enfusion pipe trap, 3 inches, polypropylene

Product Description

The IPEX 257563 Enfield electrofusion fittings are molded with an integral resistance wire in the socket. Jointing is completed by energizing the resistance wire via a microprocessor-controlled Enfusion Control Unit. This pipe trap offers an unparalleled level of joint reliability and repeatability.

• Positive reliable joints made in 2 minutes - installation time is reduced
• Several joints can be made at one time
• Proven reliability for over a decade

Product Highlights

The IPEX Enfield electrofusion pipe trap provides optimum performance at the joint interface with controlled fit, temperature, and time.

Product Information

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 257563

Technical Specifications

• Fitting / Connector Type: Trap
• Material: Polypropylene
• Nominal Size: 3 in
• Manufacturer: IPEX
• Manufacturer #: 257563
• Temperature Rating: -10 to 212 deg F
• Type: Enfusion
• Size (in): 3
• Standards/Certifications: ASTM F1412;CSA B181.3;UPC;UPC/IPC
• Sub Brand: Enfield
• Item Name: P-Trap
• Connection Type: Enfusion Socket
• Schedule: SCH 40
• Material Standard: ASTM D4101
• Finish/Color: Green
• Method Of Manufacturer: Electrofusion
• Industry Standards: UL Listed, UPC File Number: 1103, 3455, IAPMO Certified, NSF 14 Standard, CSA B181.3 Certified
• Collection Name: Enfield
• Connection Type Description: Electrofusion Joint
• Shape: Solid
• Supplier Part Number(s): 257563, LT13
• Certification/Standards: ASTM F1412, ASTM D 4101, ASTM D 635, ASTM D 311, CSA B181.3, Fire Retardant, NSF14
