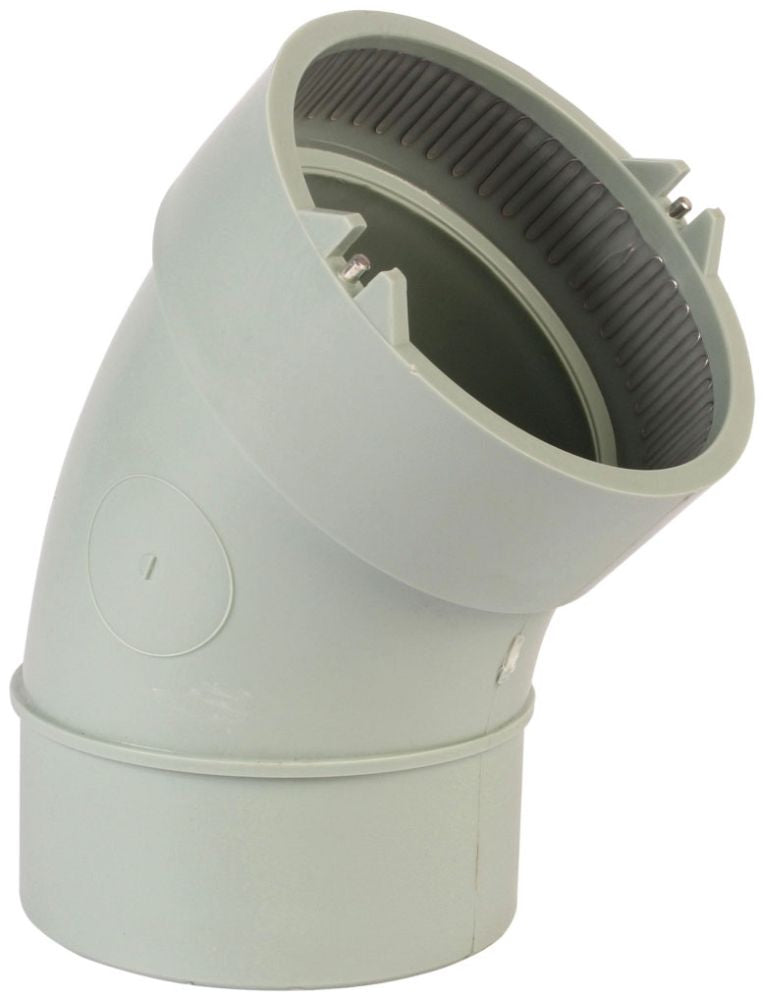

Ipex 257224 Enfield Electrofusion 1/8 Bend EJ x Sp

Product Description

The IPEX 257224 Enfield electrofusion polypropylene acid waste systems effectively handle a variety of corrosive chemicals and pH levels. Fittings are constructed with a heavy-gauge resistance wire integrally molded in the socket. Jointing is completed by energizing the resistance wire via a microprocessor controlled Enfusion Control Unit.

• Unparalleled joint reliability and repeatability
• Flame-retardant polypropylene
• Temperature range from -10 Degrees F (-23 Degrees C) to 212 Degrees F (100 Degrees C)

Product Highlights

These electrofusion fittings are quick and easy to connect and install and are maintenance free. Suitable for above- and below-grade acid waste applications.

Product Information

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 257224

Technical Specifications

• Type: Elbow
• Size 1 (in): 4
• Size 2 (in): 4
• Standards/Certifications: PMG-1274;ASTM F1412;CSA B181.3;NSF 14;UPC;Product Approval
• Nominal Size: 4 x 4 in
• Connection Size 1: 4 in
• Connection Size 2: 4 in
• Connection Type: Electrofusion|Spigot
• Connection Type 1: Electrofusion
• Connection Type 2: Spigot
• Fitting Type: 45 deg Bend
• Material: Polypropylene
• Material Construction: Polypropylene
• Temperature Rating: -10 to 212 deg F
