Ipex 257173 90å¡ Sweep EJ 3 in

Product Description

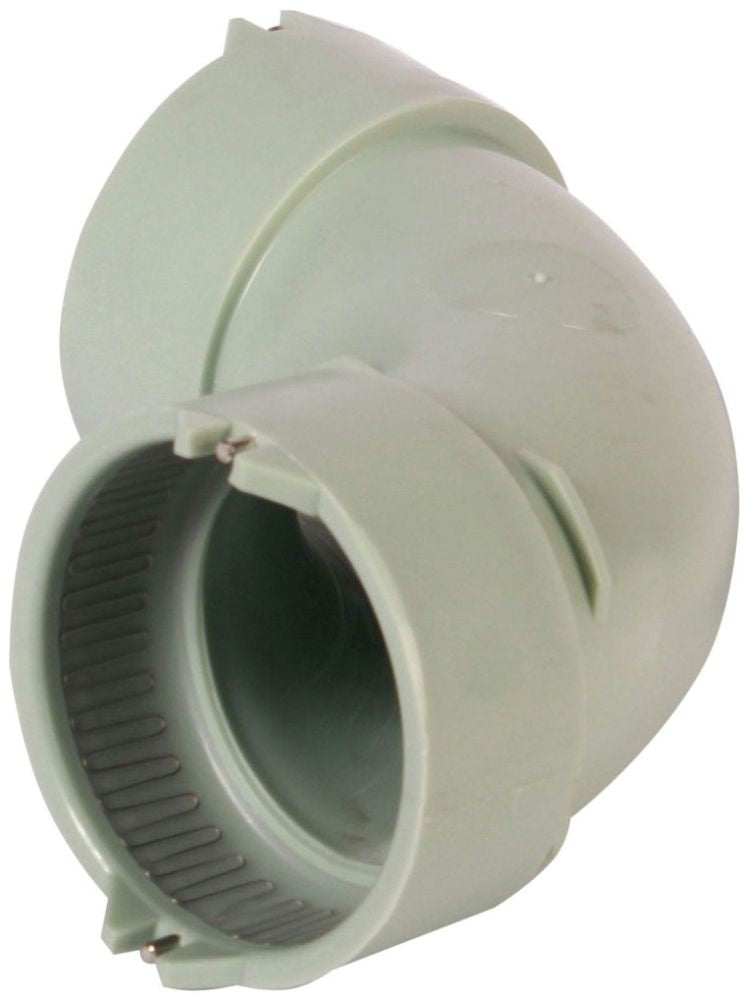

The IPEX 257173 90å¡ Sweep EJ is a 3-inch Enfield electrofusion 90-degree sweep elbow. It is designed to handle corrosive chemicals and pH levels found in chemical waste applications. Fittings are constructed with a heavy-gauge resistance wire integrally molded in the socket. Jointing is completed by energizing the resistance wire via a microprocessor controlled Enfusion Control Unit.

• Heavy gauge resistance wire molded into sockets for controlled fusion of joints.
• Easy of installation and long term reliability
• Maintenance free

Product Highlights

The IPEX Enfield Electrofusion 90 sweep fittings feature deeper sockets and clamp positioning guides for ease of installation.

Product Information

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 257173

Technical Specifications

• Type: Elbow
• Size 1 (in): 3
• Size 2 (in): 3
• Standards/Certifications: PMG-1274;ASTM F1412;CSA B181.3;NSF 14;UPC;Product Approval
• Sub Brand: Enfield
• Item Name: 90 DEG Long Sweep Elbow
• Nominal Size: 3 IN
• Connection Type: Enfusion Socket
• Schedule: SCH 40
• Material: Flame-Retardant Polypropylene
• Material Standard: ASTM D4101
• Temperature Rating: -10 To 212 DEG F
• Industry Standards: UL Listed, UPC File Number: 1103, 3455, IAPMO Certified, NSF 14 Standard, CSA B181.3 Certified
• Flammability rating: V-1
• Fitting/Connector Type: 90 deg Elbow
