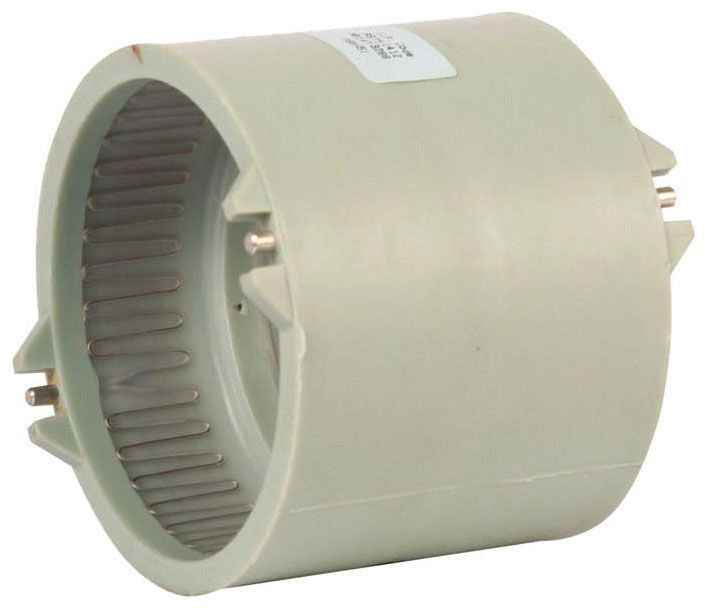

Ipex 257149 Enfield electrofusion pipe coupling, 3 inches, polypropylene

Product Description

The IPEX 257149 Enfield electrofusion fittings are molded with an integral resistance wire in the socket. Jointing is completed by energizing the resistance wire via a microprocessor controlled Enfusion Control Unit. Enfield provides control of jointing with controlled fit, temperature, and time.

• Positive reliable joints made in 2 minutes - installation time is reduced
• Several joints can be made at one time
• Proven reliability for over a decade

Product Highlights

The IPEX Enfield electrofusion pipe coupling ensures joint reliability and repeatability. It is easy to install, even in difficult areas, and is virtually maintenance free.

Product Information

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 257149

Technical Specifications

• Fitting / Connector Type: Coupling
• Material: Flame-Retardant Polypropylene
• Nominal Size: 3 IN
• Manufacturer: IPEX
• Manufacturer #: 257149
• Temperature Rating: -10 to 212 deg F
• Type: Enfusion
• Sub Brand: Enfield
• Item Name: Coupling
• Connection Type: Enfusion Socket
• Schedule: SCH 40
• Material Standard: ASTM D4101
• Finish/Color: Green
• Method Of Manufacturer: Electrofusion
• Outside Diameter: 4 IN
• Industry Standards: UL Listed, UPC File Number: 1103, 3455, IAPMO Certified, NSF 14 Standard, CSA B181.3 Certified
• Other Physical Dimension: 1-3/8 IN Socket Depth
