Ipex 257146 Enfield䋢 Electrofusion Pipe Coupling, 2 in, Polypropylene

Product Description

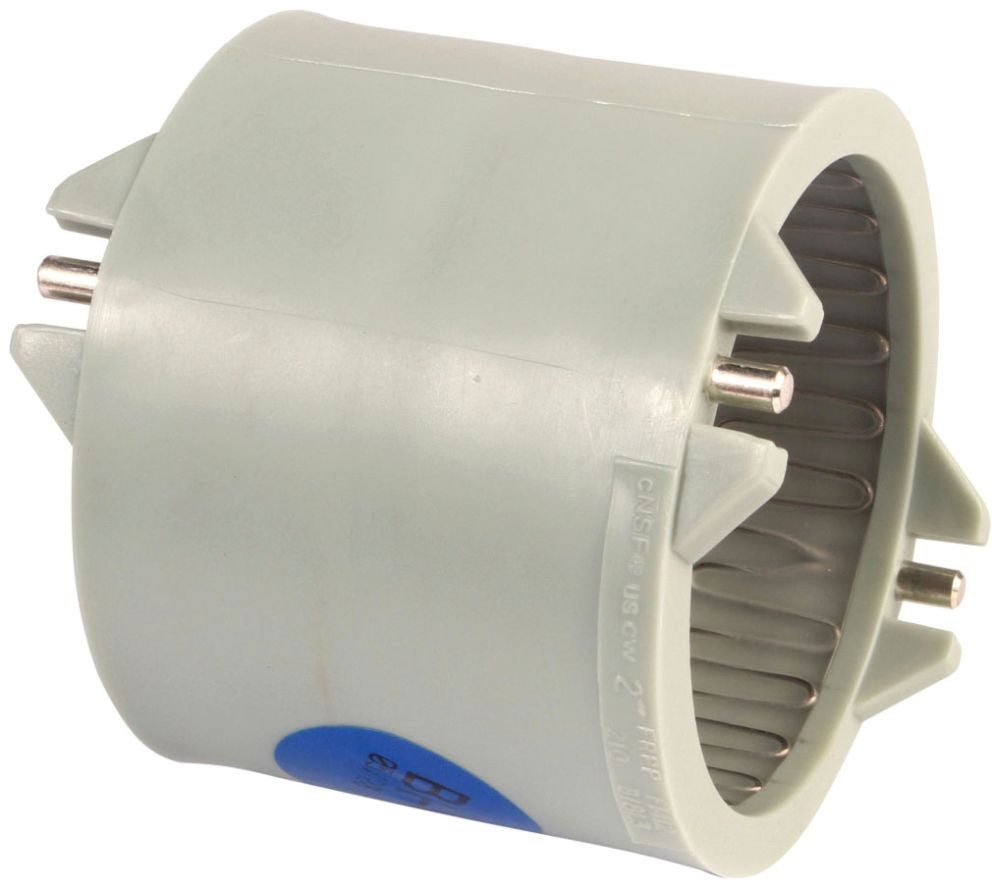

The IPEX 257146 Enfield䋢 electrofusion pipe coupling features an integral resistance wire in the socket. Jointing is completed by energizing the resistance wire via a microprocessor-controlled Enfusion Control Unit. This 2-inch coupling is made of polypropylene and can be used in temperatures ranging from -10 to 212 deg F.

• Positive reliable joints made in 2 minutes - installation time is reduced
• Several joints can be made at one time
• Proven reliability for over a decade

Product Highlights

Electrofusion fittings provide reliable joint performance with controlled fit, temperature, and timing.

Product Information

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 257146

Technical Specifications

• Fitting/Connector Type: Coupling
• Nominal Size: 2 In
• Material: Flame-Retardant Polypropylene
• Temperature Rating: -10 to 212 deg F
• Schedule: SCH 40
• Connection Type: Enfusion Socket
• Material Standard: ASTM D4101
• Method Of Manufacturer: Electrofusion
• Outside Diameter: 2-13/16 IN
• Industry Standards: UL Listed, UPC File Number: 1103, 3455, IAPMO Certified, NSF 14 Standard, CSA B181.3 Certified
• Other Physical Dimension: 1 IN Socket Depth
