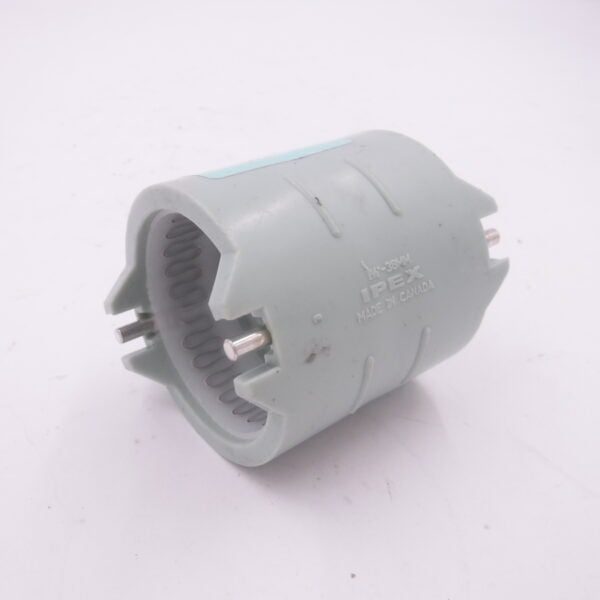

Ipex 257141 Enfield Electrofusion Pipe Coupling, 1-1/2 inches, Polypropylene

Product Description

The IPEX 257141 Enfield Electrofusion pipe coupling is molded with an integral resistance wire in the socket. Jointing is completed by energizing the resistance wire via a microprocessor-controlled Enfusion Control Unit. It offers unprecedented control of jointing with controlled fit, temperature, and time.

• Positive reliable joints made in 2 minutes - installation time is reduced
• Several joints can be made at one time
• Proven reliability for over a decade

Product Highlights

The Enfield electrofusion fitting provides an unparalleled level of joint reliability and repeatability, ensuring optimum performance at the joint interface.

Product Information

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 257141

Technical Specifications

• Fitting / Connector Type: Coupling
• Material: Polypropylene
• Nominal Size: 1-1/2 in
• Manufacturer: IPEX
• Manufacturer #: 257141
• Temperature Rating: -10 to 212 deg F
• Brand: IPEX
• MPN: 257141
• Type: Pipe Coupling
• Sub Brand: Enfield
• Item Name: Coupling
• Connection Type: Enfusion Socket
• Schedule: SCH 40
• Material Standard: ASTM D4101
• Outside Diameter: 2-7/16 IN
• Industry Standards: UL Listed, UPC File Number: 1103, 3455, IAPMO Certified, NSF 14 Standard, CSA B181.3 Certified
• Other Physical Dimension: 3/4 IN Socket Depth
