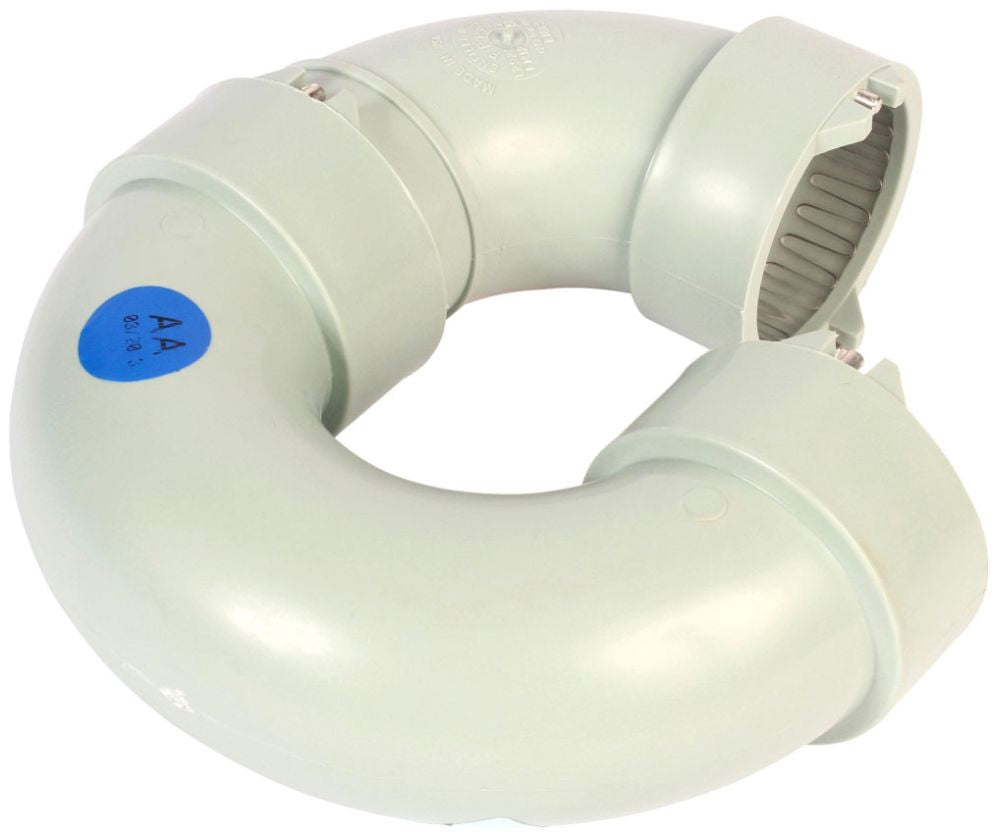

Ipex 257105 Enfield䋢 Electrofusion Pipe Trap, 2 inches, Polypropylene

Product Description

The IPEX 257105 Enfield䋢 electrofusion fitting is molded with an integral resistance wire in the socket. Jointing is completed by energizing the resistance wire via a microprocessor-controlled Enfusion Control Unit. It is made from polypropylene with an operating temperature range from -10 to 212 deg F.

• Positive reliable joints made in 2 minutes - installation time is reduced
• Several joints can be made at one time
• Proven reliability for over a decade

Product Highlights

The IPEX Enfield䋢 electrofusion pipe trap offers unprecedented control of jointing with controlled fit, temperature, and time. It ensures secure joints and joint repeatability.

Product Information

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 257105

Technical Specifications

• Fitting / Connector Type: Trap
• Material: Polypropylene
• Nominal Size: 2 in
• Manufacturer: IPEX
• Manufacturer #: 257105
• Temperature Rating: -10 to 212 deg F
• Type: Enfusion
• Standards/Certifications: Commonwealth of Massachusetts - Product Approval;ASTM F1412;CSA B181.3;UPC;UPC/IPC
• Sub Brand: Enfield‰ã¢
• Item Name: P-Trap
• Connection Type: Enfusion Socket
• Schedule: SCH 40
• Material Standard: ASTM D4101
• Method Of Manufacturer: Electrofusion
• Industry Standards: UL Listed, UPC File Number: 1103, 3455, IAPMO Certified, NSF 14 Standard, CSA B181.3 Certified
