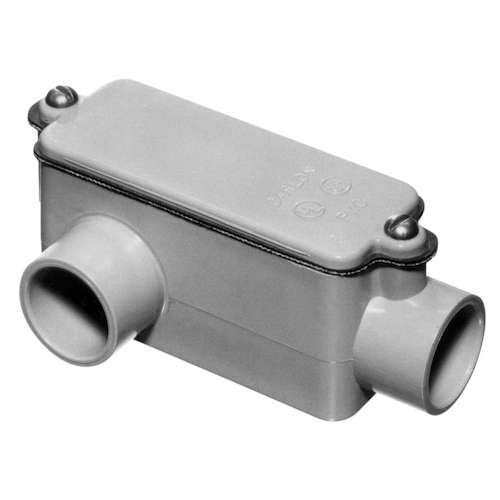

Ipex 200plr Pvc Type Lr Conduit Body 2 Inch

Product Description

The IPEX 200plr is a 2-inch PVC Type LR conduit body designed for use in electrical raceway systems where a pulling point or direction change is required. Constructed from PVC, this rectangular conduit body with cover provides a weathering-resistant enclosure suitable for both indoor and outdoor installations. With an internal capacity of 63.5 cubic inches, it accommodates the conductor fill requirements typical of a 2-inch trade size application. Electricians install this fitting as part of a PVC conduit run to facilitate wire pulling and directional changes without exceeding allowable bend counts.

The 200plr is suited for residential and light commercial electrical conduit systems where PVC raceway is specified. The LR style body provides a left-to-right directional change along the conduit run. It is commonly used in service entrances, branch circuit feeders, and exposed conduit installations where corrosion resistance and ease of assembly are priorities.

Key Features

• PVC construction provides corrosion resistance for indoor and outdoor conduit runs
• Type LR style directs conduit from left to right within the raceway
• 63.5 cubic inch interior capacity meets NEC conductor fill requirements for 2-inch trade size
• Rectangular body with included cover for access to conductors during pulls
• 2-inch trade size fits standard 2-inch PVC conduit and fittings

Compatibility

Designed as an OEM-style replacement and standard fitting for 2-inch PVC electrical conduit raceway systems.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize all circuits before opening or working on any conduit body. Solvent-cement all PVC conduit connections per manufacturer and code requirements, and allow adequate cure time before pulling conductors. Do not exceed the conductor fill capacity marked on the fitting or calculated per NEC fill tables.

Technical Specifications

• Trade Size: 2 inches
• Capacity: 63.5 cubic inches
• Material: PVC
• Style: LR
• Type: Rectangular with Cover

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 200plr
