Ipex 156361 Labline Flame Retardant Polypropylene Acid Waste Wye, W371

Product Description

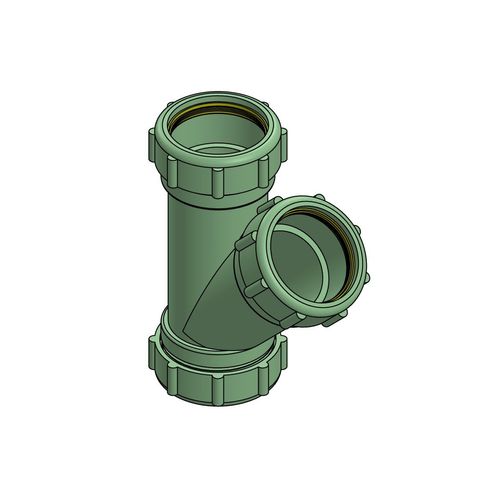

The IPEX 156361 Labline 1-1/2" 45 Degree Wye is part of the Labline Mechanical-Joint Acid Waste System, a flame retardant polypropylene (FRPP) piping solution designed for laboratory and industrial acid waste drainage applications. Labline fittings are furnished assembled with Olives and Union Nuts.

• Flame retardant polypropylene (FRPP) construction - NSF listed, self-extinguishing, does not support combustion after flame is removed
• Operating temperature range from -10F to 212F, allowing systems to be flushed with boiling water
• All-plastic construction eliminates galvanic action, electrolysis and corrosion at the joint

Product Highlights

The IPEX Labline Mechanical Joint 45 wye helps securely connect pipes in the IPEX Labline acid waste system. Designed to withstand high temperatures and corrosive chemicals, Labline fittings are easy to install and can be disassembled and re-used if the layout changes.

Product Information

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 156361

Technical Specifications

• Size: 1-1/2"
• Product Type: Wye
• Material: Polypropylene
• Type: Wye
• Size 1 (in): 1 1/2
• Size 2 (in): 1 1/2
• Size 3 (in): 1 1/2
• Standards/Certifications: ASTM F1412;UPC/IPC;CSA B181.3
• Sub Brand: Labline
• Item Name: 45 DEG Wye
• Nominal Size: 1-1/2 IN
• Connection Type: Mechanical Joint
• Schedule: SCH 40
• Material Standard: ASTM D4101
• Finish/Color: Green
• Length: 5-13/16 IN
• Temperature Rating: -10 To 212 DEG F
• Industry Standards: UL Listed, UPC File Number: 1103, 3455, IAPMO Certified, NSF 14 Standard, CSA B181.3 Certified
• Other Physical Dimension: 3-13/16 IN Center To End Outlet
• Fitting/Connector Type: Wye
• Dimensions: 5-13/16 in H
