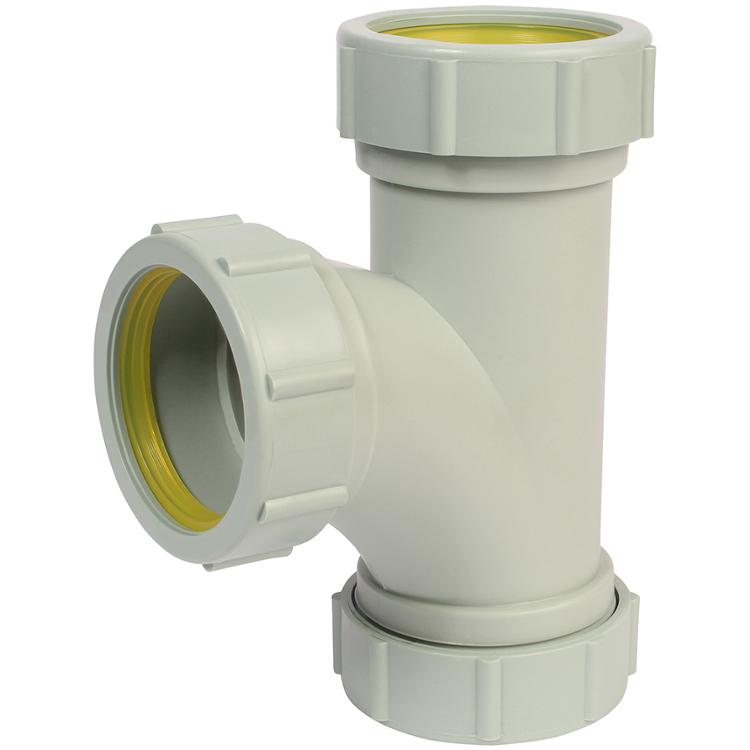

Ipex 156201 Labline Sanitary Tee 1-1/2 inches

Product Description

The IPEX 156201 Labline 1-1/2" Sanitary Tee is part of the Labline Mechanical-Joint Acid Waste System, a flame retardant polypropylene (FRPP) piping solution designed for laboratory and industrial acid waste drainage applications. It offers a fast mechanical joint that displaces costly glass and metal systems.

• Flame retardant polypropylene (FRPP) construction - NSF listed, self-extinguishing
• Operating temperature range from -10F to 212F
• All-plastic construction eliminates galvanic action, electrolysis and corrosion at the joint

Product Highlights

The mechanical joint completes in 30 seconds and significantly reduces installation time. It can be disassembled and re-used, ideal for modular and remodel applications. Excellent chemical resistance across a wide range of chemicals with pH 1 to 13.

Product Information

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 156201

Technical Specifications

• Product Type: Sanitary Tee
• Material: Polypropylene
• Size: 1-1/2"
• Type: Tee
• Standards/Certifications: ASTM F1412;UPC/IPC;CSA B181.3
• End Style: Mechanical Joint
• Nominal Size: 1-1/2 in
• Manufacturer: IPEX
• Manufacturer #: 156201
• Connection Type: Mechanical Joint
• Schedule: SCH 40
• Material Standard: ASTM D4101
• Temperature Rating: -10 To 212 DEG F
• Industry Standards: UL Listed, UPC File Number: 1103, 3455, IAPMO Certified, NSF 14 Standard, CSA B181.3 Certified
• Flammability rating: V-1
• Sub Brand: Labline
