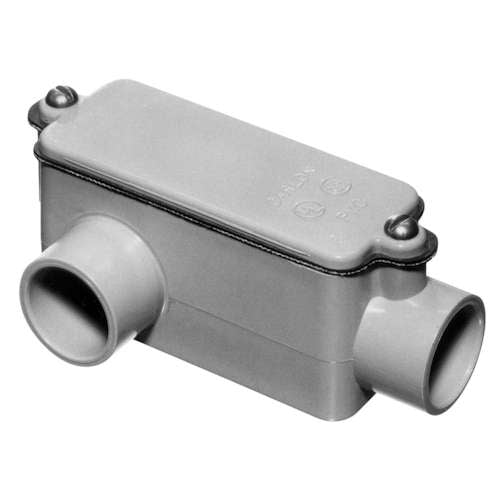

Ipex 114plr Pvc Type Lr Conduit Body 1-1/4 Inch

Product Description

The IPEX 114plr is a 1-1/4 inch trade size, Type LR PVC conduit body designed for use in electrical conduit systems requiring a left-turn pull point or branch access. Constructed from PVC, this rectangular-style body offers a 25 cubic inch capacity and includes a cover. It is installed by licensed electricians in both residential and commercial conduit runs where a code-compliant access point, direction change, or wire pulling location is needed. The all-PVC construction makes it suitable for corrosive or wet environments where metal conduit fittings are not appropriate.

This conduit body is used in PVC conduit systems where a left-right pull point is required. The Type LR configuration provides access from one side of the fitting, making it practical in tight runs along walls or through framing where a standard elbow will not allow adequate wire pulling clearance. It is appropriate for indoor and outdoor installations in residential, light commercial, and industrial settings.

Key Features

• 25 cubic inch interior capacity for compliant wire fill per NEC requirements
• Type LR style provides left-side access for wire pulling and inspection
• PVC construction resists corrosion and moisture in wet or damp locations
• Rectangular body with cover included for enclosed, code-compliant installation
• 1-1/4 inch trade size fits standard 1-1/4 inch PVC conduit

Compatibility

Designed as an OEM-style replacement or new-install fitting for 1-1/4 inch PVC electrical conduit systems.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements for conduit body fill and support. De-energize all circuits before opening or working within any conduit body. Use appropriate PVC conduit cement when joining to Schedule 40 or Schedule 80 PVC conduit. Secure the cover with the provided hardware to maintain the enclosure rating after wire pulling is complete.

Technical Specifications

• Trade Size: 1-1/4 inch
• Capacity: 25 cubic inches
• Material: PVC
• Style: LR
• Type: Rectangular with Cover

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 114plr
