Ipex 114034prb Pvc Reducing Bushing 1-1/4 X 3/4 Inch

Product Description

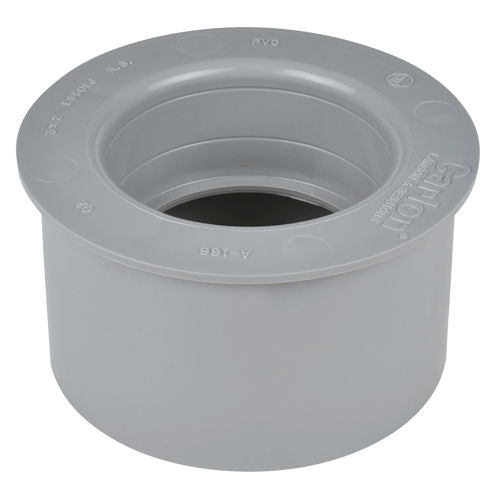

The IPEX 114034prb is a PVC reducing bushing designed to transition between two different pipe sizes within a drainage or supply piping system. It connects a 1-1/4 inch bell (socket) end to a 3/4 inch spigot end, allowing a larger-diameter fitting or pipe to accept a smaller-diameter pipe run without additional adapters. Constructed from non-metallic PVC material, this bushing resists corrosion and chemical degradation common in both hot and cold water applications. Plumbers and pipefitters install this fitting during rough-in and finish plumbing work wherever a size reduction is needed in a PVC line.

This bushing is suited for residential and light commercial plumbing installations where a 1-1/4 inch to 3/4 inch pipe size reduction is required. The bell-to-spigot configuration allows the spigot end to insert directly into a standard 1-1/4 inch socket fitting, streamlining transitions in drain, waste, vent, and pressure piping configurations that use PVC schedule pipe and fittings.

Key Features

• Bell-to-spigot reducer design transitions from 1-1/4 inch socket to 3/4 inch spigot in a single fitting
• PVC non-metallic construction resists corrosion, scaling, and chemical attack
• Compact bushing profile reduces the need for additional couplings or adapters
• Compatible with standard solvent-cement joining methods used on Schedule PVC piping systems

Compatibility

Designed as an OEM-style replacement and standard-use fitting for residential and commercial PVC piping systems requiring a 1-1/4 inch to 3/4 inch bell-to-spigot reduction.

Installation Notes

Installation is performed by licensed plumbers following applicable IPC or local plumbing code requirements. Shut off the water supply and depressurize the line before cutting into any existing piping. Clean and dry all mating surfaces, then apply PVC primer and solvent cement per the cement manufacturer instructions before joining. Allow adequate cure time before restoring flow or pressure to the line.

Technical Specifications

• Material: PVC (Non-Metal)
• Type: Bell to Spigot Reducer Bushing
• Inlet Size: 1-1/4 inches (bell/socket)
• Outlet Size: 3/4 inches (spigot)
• UPC: 98006006224

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 114034prb
