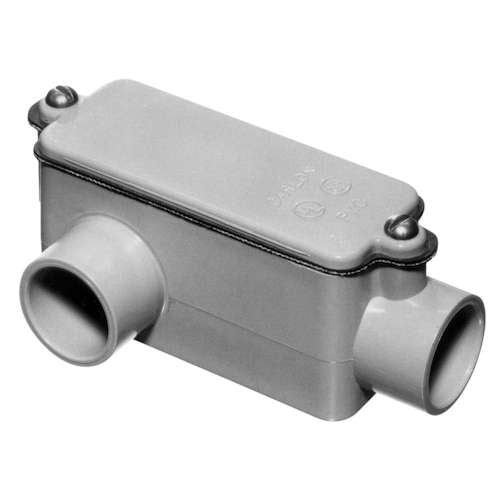

Ipex 100plr Pvc Type Lr Conduit Body 1 Inch

Product Description

The IPEX 100plr is a 1-inch trade size, Type LR PVC conduit body designed for use in electrical raceway systems. It provides a pull point and directional change in conduit runs where wire needs to be pulled, spliced, or redirected at a left-rear angle. Constructed from PVC, this conduit body resists corrosion and moisture, making it well suited for damp or corrosive environments. The rectangular body style includes a removable cover plate for wire access. With an internal capacity of 11.8 cubic inches, it meets NEC fill requirements for typical conductor counts in a 1-inch conduit run. Licensed electricians and electrical contractors are the primary installers of this fitting.

The IPEX 100plr is used in residential, commercial, and light industrial electrical installations where PVC conduit systems are specified. It is commonly installed in exposed or concealed raceway runs that require a change of direction toward the left rear, such as at service entrances, panel feeds, and branch circuit routing along walls or ceilings. Its PVC construction makes it a preferred choice in wet locations, underground transitions, and chemical environments where metallic conduit bodies would be prone to corrosion.

Key Features

• 11.8 cubic inch internal capacity supports NEC wire fill requirements for 1-inch conduit runs
• Type LR configuration allows left-rear directional changes in conduit routing
• PVC construction provides corrosion resistance in damp, wet, and chemically active environments
• Rectangular body style includes a removable cover for wire pulling and inspection access
• 1-inch trade size matches standard 1-inch PVC conduit systems

Compatibility

Designed as an OEM-style fitting for use with 1-inch trade size PVC conduit systems in standard electrical raceway installations.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the circuit completely before opening or working within any conduit body on an existing run. Solvent-cement all PVC conduit connections per the conduit and cement manufacturer instructions, ensuring proper cure time before pulling wire. Do not over-fill the conduit body beyond the rated 11.8 cubic inch capacity as calculated per NEC conductor fill tables.

Technical Specifications

• Trade Size: 1 inch
• Internal Capacity: 11.8 cubic inches
• Material: PVC
• Style: LR
• Type: Rectangular with Cover
• UPC: 98006006583

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 100plr
