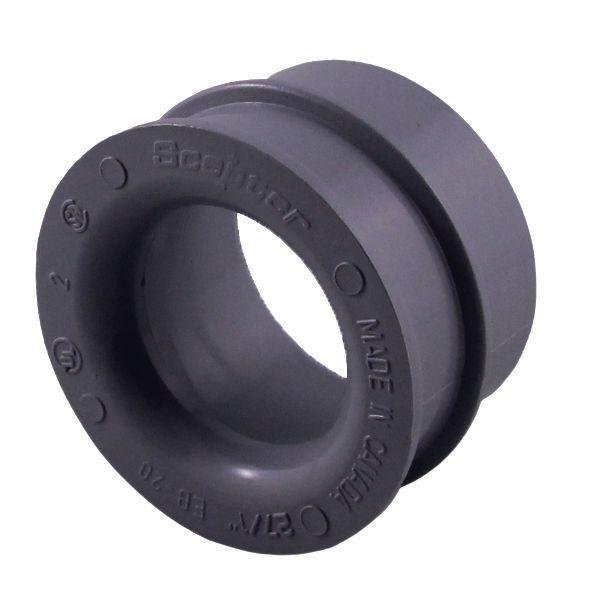

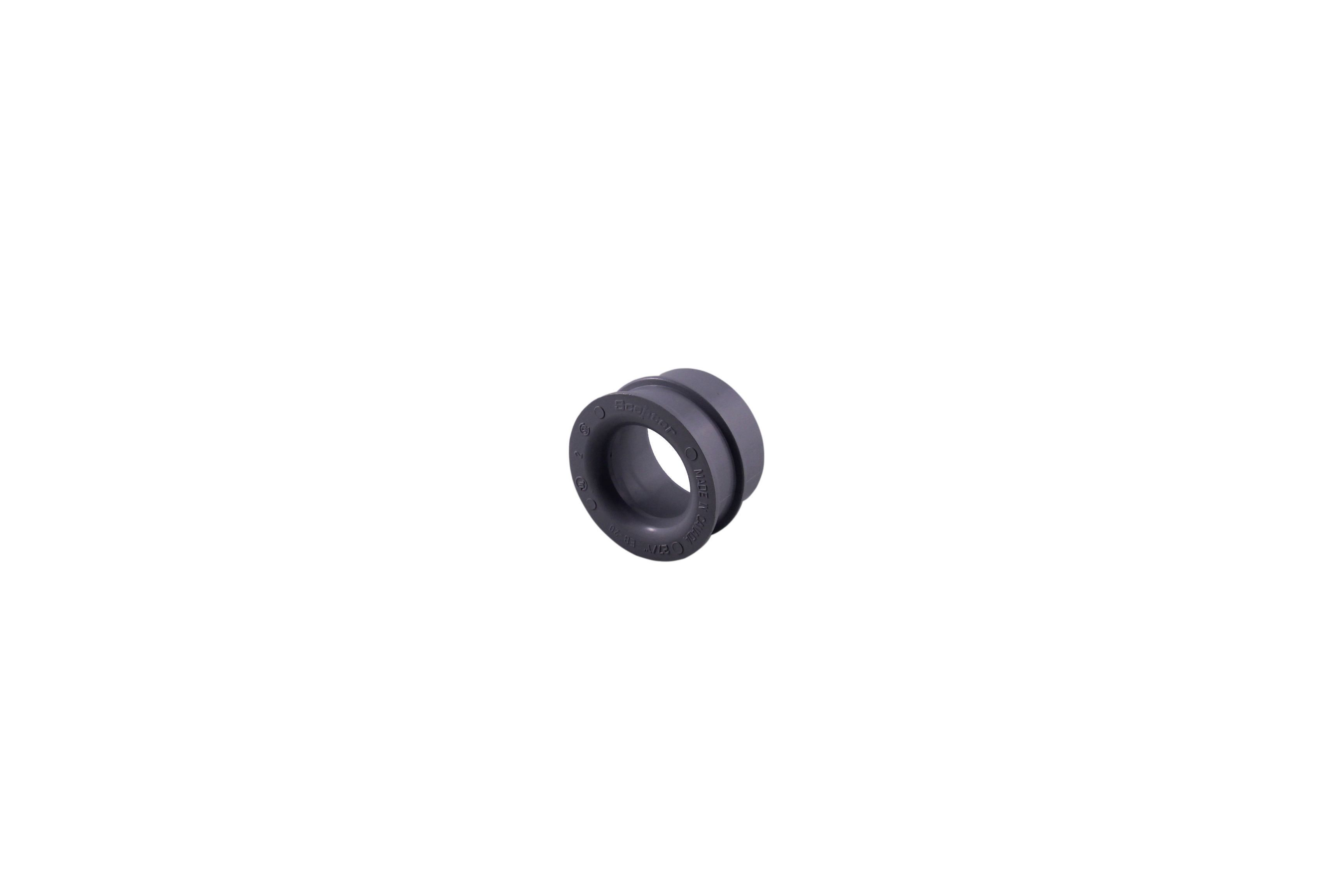

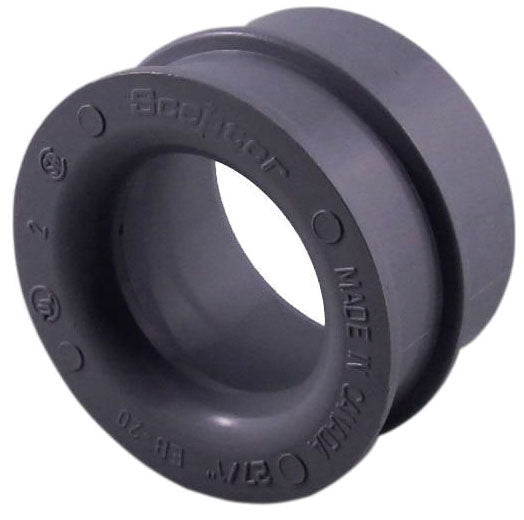

Ipex 077323 Socket Molded End Bell 1 in

Product Description

Ipex 077323 is a 1 inch PVC socket molded end bell that provides a flared, smooth pulling surface for rigid PVC conduit. Constructed from Schedule 40 rigid, impact-resistant PVC, the fitting uses a push-on (socket) connection and fits 1 inch trade-size conduit (27 mm ID). It carries UL, CSA and NSF approvals, meets NEMA TC-2, and is suitable for exposed, concrete-encased and direct burial installations.

• Flared end creates a smooth, rounded pulling surface to reduce cable damage
• Schedule 40 rigid PVC construction; socket molded push-on connection; actual inside diameter 1 in (27 mm)
• UL, CSA, NSF approvals; meets NEMA TC-2; suitable for exposed, concrete-encased and direct burial installations

Product Highlights

1 in socket molded end bell in Schedule 40 PVC with UL/CSA/NSF approvals; push-on connection; suitable for exposed, concrete-encased and direct burial use.

Product Information

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 077323
• Country of Origin: Canada

Technical Specifications

• Brand: IPEX
• Manufacturer: IPEX, Inc.
• Manufacturer Part Number: 077323
• Model: EB20
• Product Type: End bell (socket molded)
• Material: PVC (Schedule 40 rigid PVC)
• Size: 1 in
• Trade Size: 1 inch
• Inner Diameter: 1 in (27 mm)
• Length: 1.152 in (29.26 mm)
• Connection Type: Push-on (socket molded)
• Conduit Type: Rigid nonmetallic conduit (RNC)
• Suitable For: Exposed, concrete-encased, direct burial
• Standards/Approvals: UL, CSA, NSF; meets NEMA TC-2
• Resistance Properties: Chemical resistant; corrosion resistant; sunlight/UV resistant; dust protected; fire resistant
• Country of Origin: Canada
• UPC: 62245477323
• Category: PVC Conduit Fittings & Accessories
