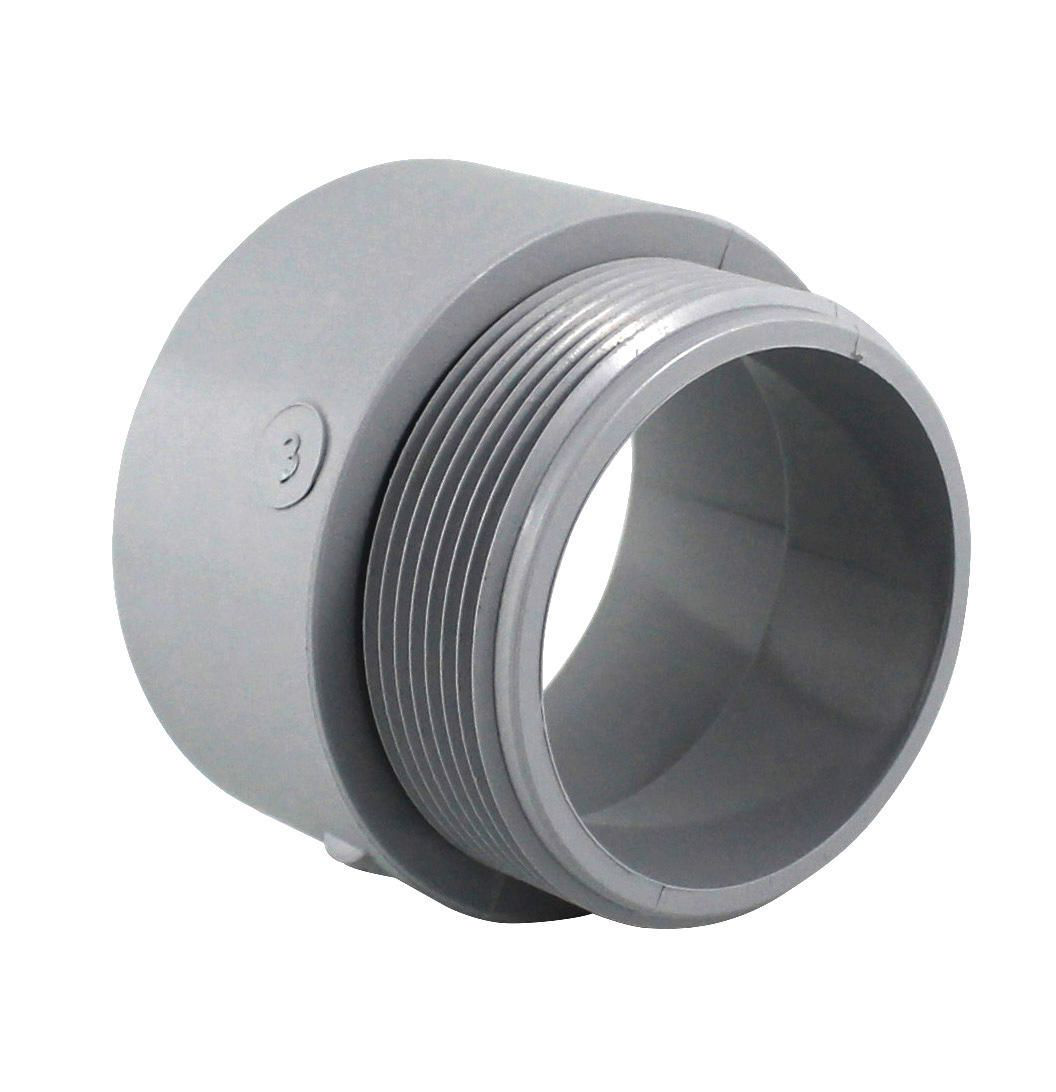

Ipex 077026 Scepter Terminal Adapter 2 in Male Thread PVC Coated

Product Description

Ipex 077026 is a Scepter 2 in terminal adapter made from PVC (PVC coated) for connecting rigid conduit to electrical enclosures. It has a male threaded end with 0.8 in thread length and dimensions of 2.38 in ID x 2.72 in OD x 2.1 in length. The adapter meets CSA C22.2 No. 85 and is UL 651 listed and is suitable for exposed, concrete-encased, and direct burial installations.

• Material: PVC (PVC coated, high-impact); nonconductive and resists acids, alkalis, and salt solutions
• Certifications: CSA C22.2 No. 85 certified and UL 651 listed; suitable for exposed, concrete-encased, and direct burial installations
• Mechanical: 2 in size with 2.38 in ID x 2.72 in OD x 2.1 in length, male thread type with 0.8 in thread length for rigid conduit connections

Product Highlights

2 in PVC terminal adapter with male thread for rigid conduit-to-enclosure connections; UL 651 listed and CSA C22.2 No. 85 certified; dimensions 2.38 in ID x 2.72 in OD x 2.1 in L.

Product Information

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 077026
• Country of Origin: Canada

Technical Specifications

• Brand: Ipex
• MPN: 077026
• Product Line: Scepter
• Model: TA35
• Catalog Number: 077026
• Item Number: 323521
• UPC: 62245477026
• Size: 2 in
• Dimensions: 2.38 in ID x 2.72 in OD x 2.10 in L
• Thread Type: Male
• Thread Length: 0.8 in
• Material: PVC (PVC coated, high-impact)
• Weight: 0.14 lb (0.062 kg)
• Country of Origin: Canada
• Certifications: CSA C22.2 No. 85; UL 651 Listed
• Suitable For Use With: Rigid conduit
• Applications: Conduit-to-enclosure connection; exposed, concrete-encased, and direct burial installations
• NAFTA: Yes
