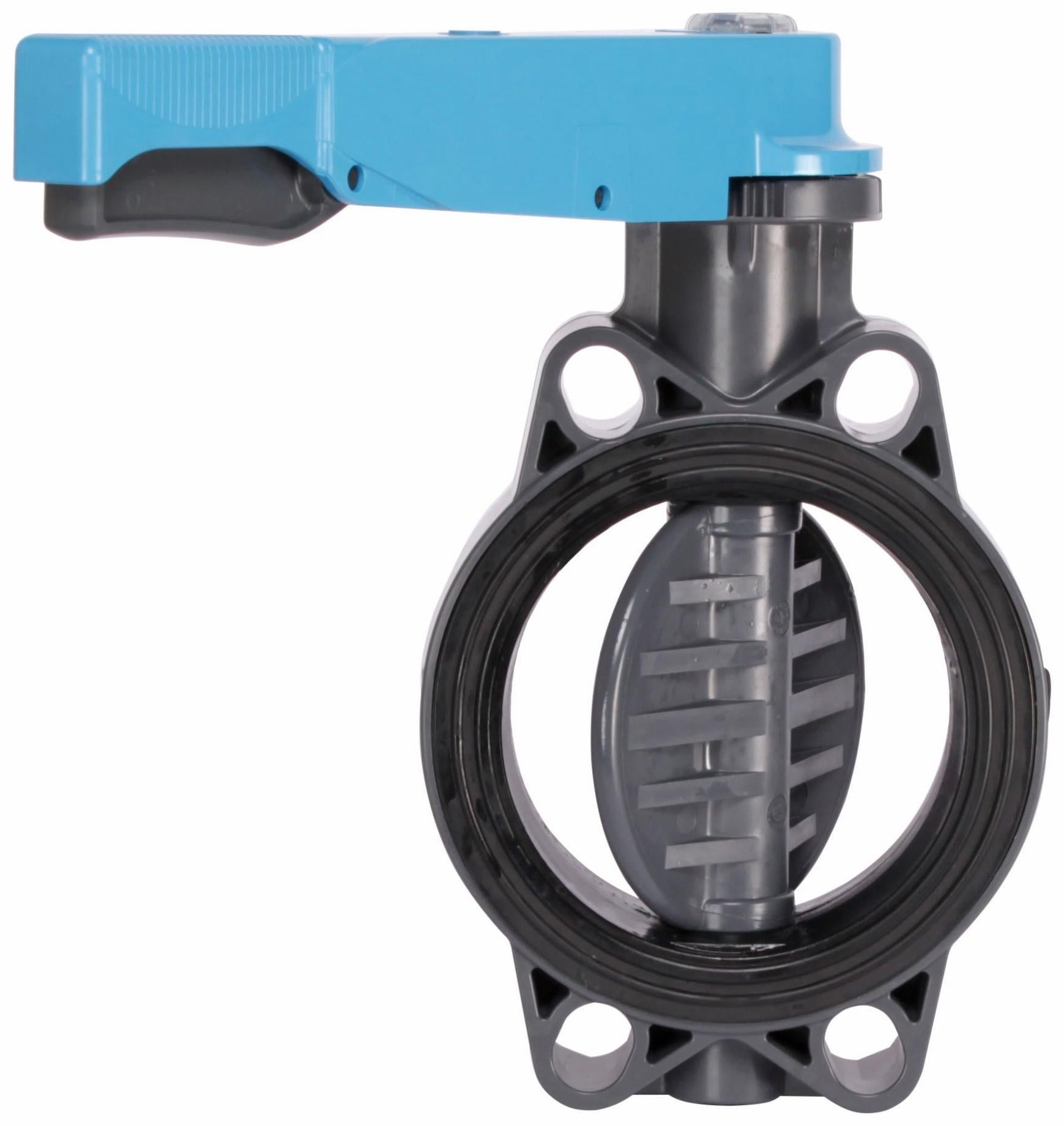

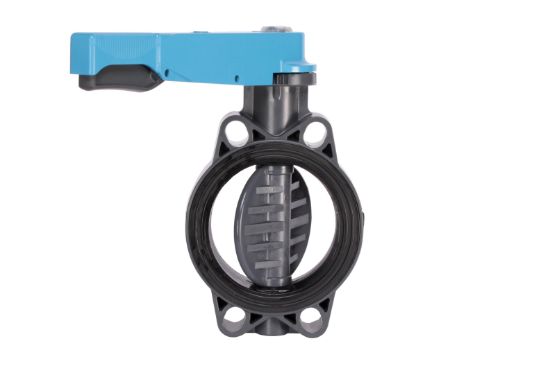

Ipex 053083 6 inches Fe Butterfly Valve Pvc/Pvc Epdm Fl Wafer Xirtec-140

Product Description

The IPEX 053083 FE butterfly valve incorporates many features of the industrial FK valve at a competitive price. Its PVC construction with an EPDM liner is suitable for applications from swimming pools to chemical processes. Operated through a lever handle, the valve body features channeling to prevent liner slippage and compression.

• Excellent chemical resistance
• Handle incorporates a transparent PVC plug and tag holder for valve identification
• The body cavity shall feature special channeling to prevent liner slippage and compression

Product Highlights

The IPEX FE butterfly valve is a competitively priced thermoplastic valve with PVC construction and EPDM liner, suitable for various applications.

Product Information

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 053083
• Country of Origin: Italy

Technical Specifications

• Connection Size: 6"
• Connection Type: Flg
• Material: PVC/PVC
• Brand: Ipex
• SKU: IPE053083
• End Connection: Flanged
• Material Type: PVC
• Maximum Temperature: 73
• Style Name: Xirtec FE Series
• Valve Size: 6 in.
• Valve Type: Butterfly Valve
• Pressure - High: 150 psi
• Valve Seat Material: EPDM
• Series: FE
• Style: Wafer
• Pressure Rating: 150 psi
• Media: Water
• Body Material: PVC
• Disc Material: PVC
• Liner Material: EPDM
• Softgoods Material: EPDM Seal, Seat
• Actuation Type: Lever
• Number of Bolt Holes: 4
• Temperature Rating: 73 deg F
