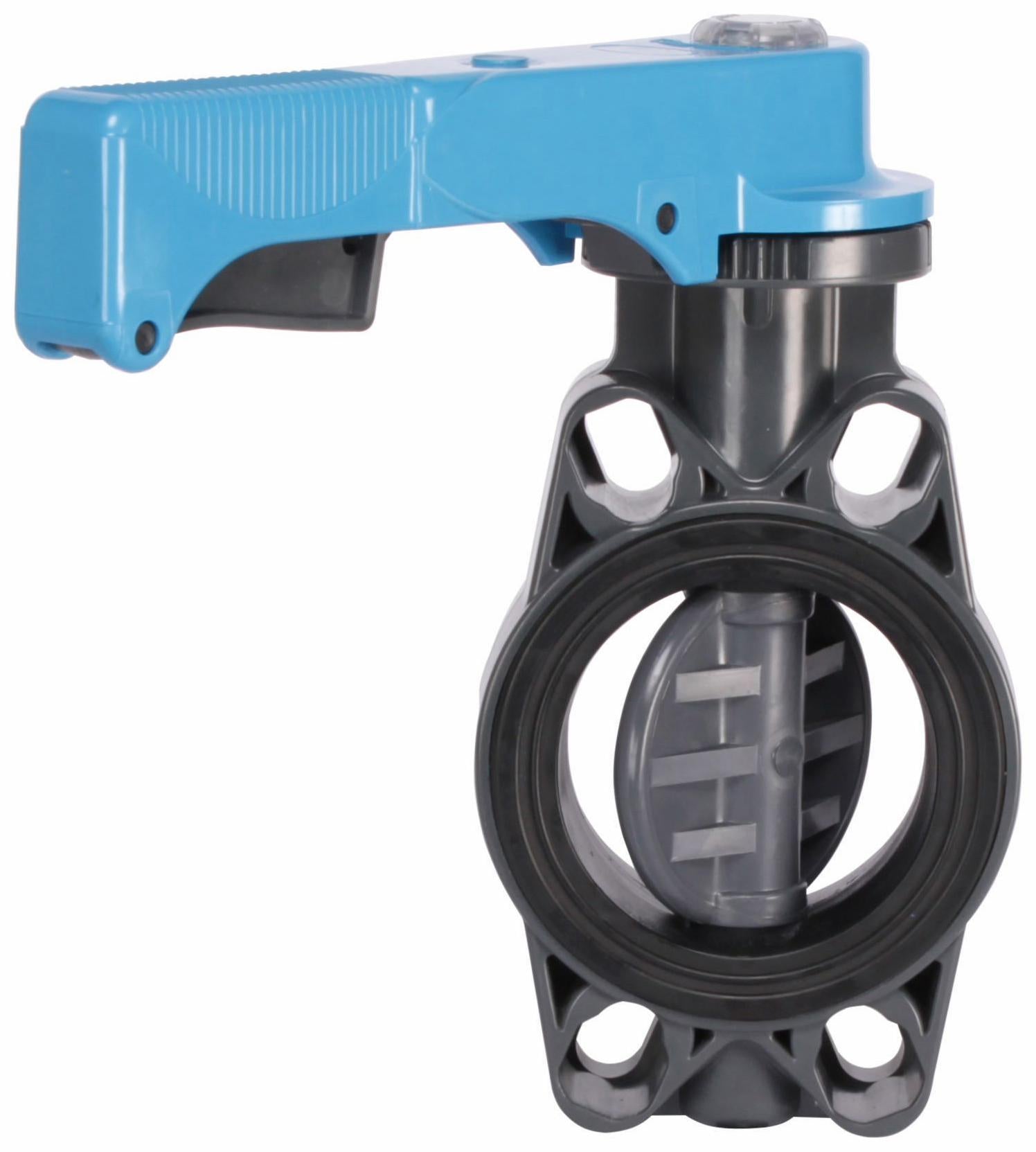

Ipex 053082 4 inches Fe Butterfly Valve Pvc/Pvc Epdm Fl Wafer Xirtec-140

Product Description

The IPEX 053082 FE butterfly valve incorporates many features and benefits at a competitive price. Constructed with PVC and an EPDM liner, this 4" valve is suitable for applications from swimming pools to chemical processes. Operated through a lever handle, it offers excellent chemical resistance and is temperature rated up to 150 psi at 73°F.

• Connection: FL
• Material: PVC/PVC
• Excellent chemical resistance

Product Highlights

The IPEX FE butterfly valve is perfect for diverse applications, offering reliable performance and chemical resistance.

Product Information

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 053082

Technical Specifications

• Connection Size: 4"
• Connection Type: Flg
• Series: FE
• Style: Wafer
• End Connection: Flanged
• Pressure Rating: 150 psi
• Media: Water
• Body Material: PVC
• Disc Material: PVC
• Liner Material: EPDM
• Softgoods Material: EPDM Seal, Seat
• Actuation Type: Lever
• Number of Bolt Holes: 4
• Temperature Rating: 73 deg F
